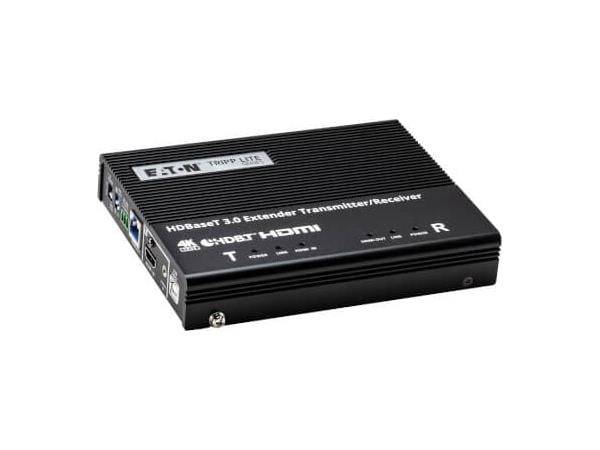

TRIPPLITE HDBASET 3.0 TRANSMITTER/RECEIVER HDMI 4K 7984262
SKU
7984262
CA$1,641.32
HDBASET 3.0 TRANSMITTER/RECEIVER, HDMI 4K 60 HZ (4:4:4), RS-232, IR CONTROL, UP TO 328 FT. (100 M), TAA
Category: AV Accessories
- Primary Information
Product Description: Eaton Tripp Lite Series HDBaseT 3.0 Transmitter/Receiver, HDMI 4K 60 Hz (4:4:4), RS-232, IR Control, Up to 328 ft. (100 m), TAA - video/audio/infrared/USB/serial/network extender - HDBaseT 3.0 - TAA Compliant Device Type: Video/audio/infrared/USB/serial/network extender Form Factor: Desktop / wall mountable Data Transfer Rate: 300 Mbps Data Link Protocol: HDBaseT 3.0 Transmission Medium: CAT 6/6a Max Transfer Distance: 328 ft Power: AC 100-240 V Dimensions (WxDxH): 6.5 in x 5.1 in x 1.1 in Weight: 22.57 oz TAA Compliant: Yes Manufacturer Warranty: 1-year warranty - General
Device Type: Video/audio/infrared/USB/serial/network extender Form Factor: Desktop / wall mountable Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDBaseT 3.0 Data Transfer Rate: 300 Mbps Max Resolution: 4096 x 2160 @ 60 Hz Max Transfer Distance: 328 ft Status Indicators: Link, power, video, HDMI input, HDMI output Features: Metal housing, HDBaseT 3.0 technology, CEC passthrough, 3D support, 4K resolution support, 36-bit Deep Color support, 4:4:4 chroma subsampling support, HDR support Compliant Standards: HDCP 2.3 - Expansion / Connectivity
Interfaces: 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x RS-232 - terminal block ¦ 1 x USB 2.0 (host) - Type B ¦ 1 x audio line-in - mini jack ¦ 1 x USB - Type A ¦ 1 x audio line-out - mini jack ¦ 1 x Ethernet 10/100 - RJ-45 ¦ 1 x IR input - mini jack female - Miscellaneous
Included Accessories: RS-232 terminal block, 2 wall mount brackets, 4 foot pads, USB-B to USB-A cable, power cord (C13 to NEMA 5-15P), power cord (C13 to BS1363), power cord (C13 to Schuko), IR sensor, IR receiver, wall mounting kit Compliant Standards: CCC, cUL, GS, Mexico NOM, RoHS, TUV, UL, WEEE, Plug and Play TAA Compliant: Yes - Power
Power Device: External power adapter Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 6.45 Watt - Dimensions & Weight
Width: 6.5 in Depth: 5.1 in Height: 1.1 in Weight: 22.57 oz - Dimensions & Weight (Shipping)
Shipping Width: 12 in Shipping Depth: 8.3 in Shipping Height: 3.9 in Shipping Weight: 4.41 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% RH (non-condensing) - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 52161524
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 52161524 |
| Part# | TRP-BHDBT3-TR |
| MFG Part# | BHDBT3-TR |
| UPC | 10037332284614 |
| Max Transfer Distance | 328 ft |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | Video/audio/infrared/USB/serial/network extender |
| Connectivity Technology | Wired |
| Data Transfer Rate | 300 Mbps |
| Form Factor | Desktop / wall mountable |
| Data Link Protocol | HDBaseT 3.0 |
| Color | Black |
