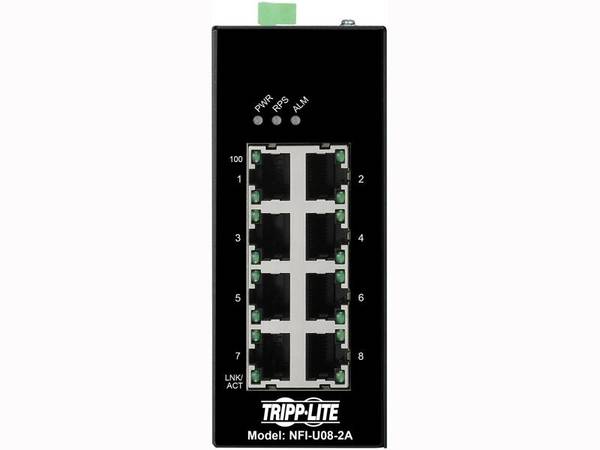

TRIPPLITE INDUSTRIAL ETHERNET SWITCH 8-PORT UNMANAGED 10/100 MBPS DIN MOUNT 7322241
SKU
7322241
CA$313.76
Category: Hubs & Switches
- Primary Information
Product Description: Tripp Lite 8-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, EIP QoS, DIN Mount - switch - industrial - 8 ports - unmanaged - TAA Compliant Device Type: Switch - 8 ports - unmanaged Subtype: Fast Ethernet Ports: 8 x 10/100 Performance: Switching capacity: 1.6 Gbps Features: Auto-negotiation, rugged, QoS, metal housing, full duplex capability, MAC address auto-learning, Storm Control, auto-uplink (auto MDI/MDI-X), flow control, CoS Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Power: DC 12 - 48 V Dimensions (WxDxH): 2 in x 4.3 in x 4.6 in Weight: 15.52 oz Color: Black TAA Compliant: Yes Manufacturer Warranty: 3-year warranty Designed For: P/N: N001-050-BK, N001-100-BK, N002-015-GY, N002-025-BK, N002-050-BK - General
Device Type: Switch - 8 ports - unmanaged Enclosure Type: DIN rail mountable Subtype: Fast Ethernet Ports: 8 x 10/100 Performance: Switching capacity: 1.6 Gbps Features: Auto-negotiation, rugged, QoS, metal housing, full duplex capability, MAC address auto-learning, Storm Control, auto-uplink (auto MDI/MDI-X), flow control, CoS Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Status Indicators: Power, RPS (Redundant Power Supply), alarm, link/activity, speed - Expansion / Connectivity
Interfaces: 8 x 100Base-T RJ-45 - Power
Voltage Required: DC 12 - 48 V Power Consumption Operational: 3 Watt - Miscellaneous
Color: Black Included Accessories: DIN-rail clip Compliant Standards: RoHS, Mexico NOM, FCC, REACH, UKCA, Plug and Play TAA Compliant: Yes - Dimensions & Weight
Width: 2 in Depth: 4.3 in Height: 4.6 in Weight: 15.52 oz - Dimensions & Weight (Shipping)
Shipping Width: 2.4 in Shipping Depth: 7.2 in Shipping Height: 9.2 in Shipping Weight: 20.46 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F - Compatibility Information
Designed For: P/N: N001-050-BK, N001-100-BK, N002-015-GY, N002-025-BK, N002-050-BK - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222612 |
| Part# | TRP-NFI-U08-2A |
| MFG Part# | NFI-U08-2A |
| Device Type | Switch - 8 ports - unmanaged |
| Color | Black |
| Enclosure Type | DIN rail mountable |
