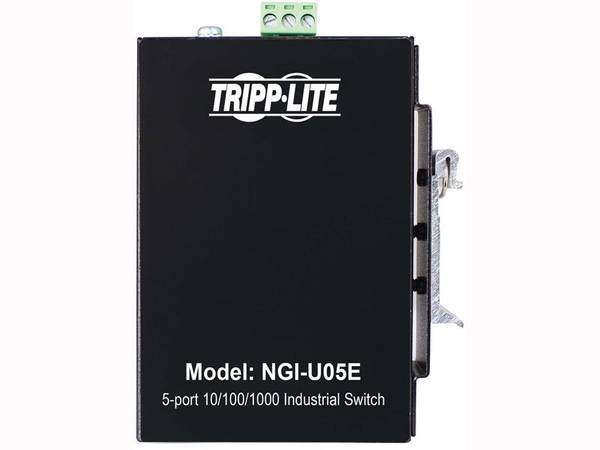

TRIPPLITE INDUSTRIAL GIGABIT ETHERNET SWITCH UNMANAGED 5-PORT 10/100/1000 MBPS 7322189
SKU
7322189
CA$358.16
INDUSTRIAL GIGABIT ETHERNET SWITCH UNMANAGED 5-PORT 10/100/1000 MBPS
Category: Hubs & Switches
- Primary Information
Product Description: Tripp Lite 5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, Ruggedized, -40° to 75°C, EIP QoS, DIN/Wall Mount - switch - 5 ports - unmanaged - TAA Compliant Device Type: Switch - 5 ports - unmanaged Ports: 5 x 10/100/1000 Performance: Switching capacity: 1 Gbps MAC Address Table Size: 2000 entries Jumbo Frame Support: 9000 bytes Features: Metal housing, MAC address auto-learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged, QoS Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Power: DC 12 - 48 V Dimensions (WxDxH): 0.9 in x 2.9 in x 4.3 in Weight: 6.7 oz Color: Black TAA Compliant: Yes Manufacturer Warranty: 3-year warranty Designed For: P/N: N001-050-BK, N002-010-BK, N002-015-GY, N002-025-BK, N002-050-BK - General
Device Type: Switch - 5 ports - unmanaged Enclosure Type: DIN rail mountable, wall-mountable Ports: 5 x 10/100/1000 Performance: Switching capacity: 1 Gbps MAC Address Table Size: 2000 entries Jumbo Frame Support: 9000 bytes Features: Metal housing, MAC address auto-learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged, QoS Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Status Indicators: Power, LAN, transmit, receive - Expansion / Connectivity
Interfaces: 5 x 10/100/1000 Base-T RJ-45 - Power
Voltage Required: DC 12 - 48 V Power Consumption Operational: 3 Watt - Miscellaneous
Color: Black Included Accessories: DIN-rail clip, wall mount brackets Compliant Standards: RoHS, REACH, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, FCC (USA) TAA Compliant: Yes - Dimensions & Weight
Width: 0.9 in Depth: 2.9 in Height: 4.3 in Weight: 6.7 oz - Dimensions & Weight (Shipping)
Shipping Width: 5 in Shipping Depth: 9.3 in Shipping Height: 2.4 in Shipping Weight: 10.93 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F - Compatibility Information
Designed For: P/N: N001-050-BK, N002-010-BK, N002-015-GY, N002-025-BK, N002-050-BK - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222612 |
| Part# | TRP-NGI-U05E |
| MFG Part# | NGI-U05E |
| Device Type | Switch - 5 ports - unmanaged |
| Color | Black |
| Enclosure Type | DIN rail mountable, wall-mountable |
