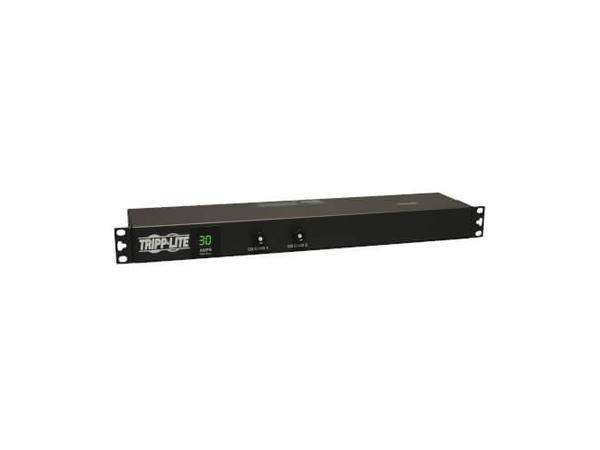

TRIPPLITE PDU METERED SURGE PROTECTION 12 5-15/20R 7170857
SKU
7170857
CA$848.64
PDUMH30-ISO - Power Distribution Unit - 1U - 100; 120; 127V - 1.92KW - (16) 5-15/20R - 20A - 2-year limited warranty - 16 NEMA 5-15/20R 120V outlets distribute AC power to connected equipment. Digital ammeter for on-site real-time load monitoring helps prevent power overloads
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 12 NEMA 5-15/20R Outlets, L5-30P Input, 15 ft. Cord, 1U Rack-Mount - power distribution unit - 2.88 kW Device Type: Power distribution unit - rack-mountable Cord Length: 15 ft Rack Size: 19" - 1U Weight: 8.82 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Power Capacity: 2.88 kW Input Connectors: Power NEMA L5-30P Output connectors: 12 x power NEMA 5-15/20R (surge) - 120 V 16 A Color: Black Dimensions (WxDxH): 18.9 in x 4.8 in x 1.7 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 1U Rack Size: 19" Cord Length: 15 ft Color: Black - Power Device
Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: Power NEMA L5-30P Power Output Connectors Details: 12 x power NEMA 5-15/20R (surge) - 120 V 16 A Output Voltage: 50/60 Hz Max Electric Current: 30 A Power Capacity: 2.88 kW Surge Suppression: Yes Surge Response Time: 1 ns Surge Energy Rating: 3840 Joules EMI/RFI Noise Filtration: 80 dB Clamping Level: 140 V Max Spike Current: 60000 A Circuit Protection: Circuit breaker - Miscellaneous
Cables Included: Power cable - integrated - 15 ft Rack Mounting Kit: Included Features: Metal housing, grounding lug, local metered, LCD display Compliant Standards: ANSI / IEEE 587 C62.41, CAN/CSA-C22.2 No. 269.3, CAN/CSA-C22.2 No. 62368-1, IEC 62368-1, NOM, RETIE, RoHS, UL 1363, UL 1449 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 18.9 in Depth: 4.8 in Height: 1.7 in Weight: 8.82 lbs - Dimensions & Weight (Shipping)
Shipping Width: 20.3 in Shipping Depth: 11.2 in Shipping Height: 3.1 in Shipping Weight: 9.81 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMH30-ISO |
| MFG Part# | PDUMH30-ISO |
| UPC | 37332255907 |
| Device Type | Power distribution unit - rack-mountable |
| Surge Suppression | Yes |
| Color | Black |
| Circuit Protection | Circuit breaker |
