TRIPPLITE PDU METERED W SURGE 20A 28 5-15/20R 0U 7170897
SKU
7170897
CA$577.20

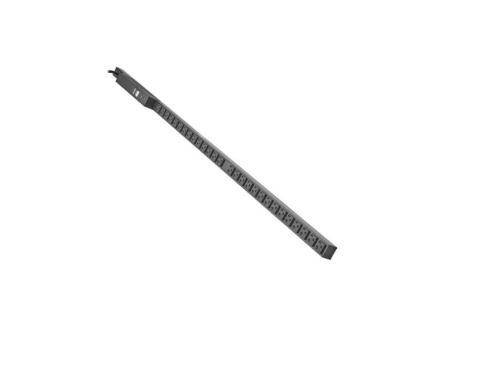

PDUMV20-ISO - Power Distribution Unit - Vertical (0U) - 120V - 1.92KW - (28) 5-15/20R - 20A - 2-year limited warranty
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series 1.92kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 28 NEMA 5-15/20R Outlets, L5-20P Input, 15 ft. Cord, 0U Vertical - power distribution unit - with ISOBAR - 1.92 kW Device Type: Power distribution unit - rack-mountable Cord Length: 15 ft Rack Size: 0U Weight: 5.38 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 1.92 kW Input Connectors: Power NEMA L5-20P Output connectors: 28 x power NEMA 5-15/20R (surge) 16 A Included Accessories: NEMA L5-20P to NEMA 5-20P plug adapter Color: Black Dimensions (WxDxH): 60.5 in x 1.6 in x 1.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 15 ft Color: Black - Power Device
Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: Power NEMA L5-20P Power Output Connectors Details: 28 x power NEMA 5-15/20R (surge) 16 A Output Voltage: AC 120 V 50/60 Hz Max Electric Current: 20 A Power Capacity: 1.92 kW Surge Suppression: Yes Surge Response Time: 1 ns Surge Energy Rating: 3840 Joules EMI/RFI Noise Filtration: 80 dB Clamping Level: 140 V Max Spike Current: 60000 A Circuit Protection: Circuit breaker - Miscellaneous
Included Accessories: NEMA L5-20P to NEMA 5-20P plug adapter Cables Included: Power cable 15 ft Rack Mounting Kit: Included Features: Aluminum housing, vertical orientation, wall mountable, local metered, LCD display, LED indicators, LED lighting on/off switch, load monitoring Compliant Standards: ANSI C62.41, IEEE 587, CAN/CSA-C22.2 No. 269.3, CAN/CSA-C22.2 No. 62368-1, Mexico NOM, RETIE, UL 1363, UL 1449, UL 62368-1, RoHS - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 60.5 in Depth: 1.6 in Height: 1.5 in Weight: 5.38 lbs - Dimensions & Weight (Shipping)
Shipping Width: 64 in Shipping Depth: 4.7 in Shipping Height: 2.6 in Shipping Weight: 9.04 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMV20-ISO |
| MFG Part# | PDUMV20-ISO |
| UPC | 37332255884 |
| Device Type | Power distribution unit - rack-mountable |
| Surge Suppression | Yes |
| Color | Black |
| Circuit Protection | Circuit breaker |
