TRIPPLITE PDU METERED W SURGE 30A 24 5-15/20R 0U 7170898
SKU
7170898
CA$1,113.84
PDUMV30-ISO - Power Distribution Unit - Vertical (0U) - 120V - 2.88KW - (20) 5-15/20R - 30A - 2-year limited warranty
Category: Power Distribution Units
- Primary Information

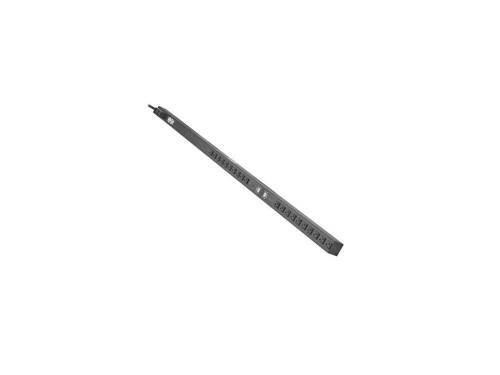

Product Description: Eaton Tripp Lite Series 2.88kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 24 NEMA 5-15/20R Outlets, L5-30P Input, 10 ft. Cord, 0U Vertical - power distribution unit - with ISOBAR - 2.88 kW Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 13.96 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 2.88 kW Input Connectors: Power NEMA L5-30P Output connectors: 20 x power NEMA 5-15/20R (surge) 12 A Color: Black Dimensions (WxDxH): 70 in x 4.3 in x 2.2 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black - Power Device
Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: Power NEMA L5-30P Power Output Connectors Details: 20 x power NEMA 5-15/20R (surge) 12 A Output Voltage: AC 120 V 50/60 Hz Max Electric Current: 30 A Power Capacity: 2.88 kW Surge Suppression: Yes Surge Response Time: 1 ns Surge Energy Rating: 3840 Joules EMI/RFI Noise Filtration: 80 dB Clamping Level: 140 V Max Spike Current: 60000 A Circuit Protection: Circuit breaker - Miscellaneous
Cables Included: Power cable 10 ft Rack Mounting Kit: Included Features: Metal housing, vertical orientation, wall mountable, local metered, LCD display per bank, LED indicators, load monitoring, grounding lug, LED lighting on/off switch Compliant Standards: ANSI C62.41, IEEE 587, CAN/CSA-C22.2 No. 269.3, CAN/CSA-C22.2 No. 62368-1, Mexico NOM, RETIE, RoHS, UL 1363, UL 62368-1, IEC 62368-1, UL 1449 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 70 in Depth: 4.3 in Height: 2.2 in Weight: 13.96 lbs - Dimensions & Weight (Shipping)
Shipping Width: 76.6 in Shipping Depth: 6.9 in Shipping Height: 5.9 in Shipping Weight: 17.86 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMV30-ISO |
| MFG Part# | PDUMV30-ISO |
| UPC | 37332255891 |
| Device Type | Power distribution unit - rack-mountable |
| Surge Suppression | Yes |
| Color | Black |
| Circuit Protection | Circuit breaker |
