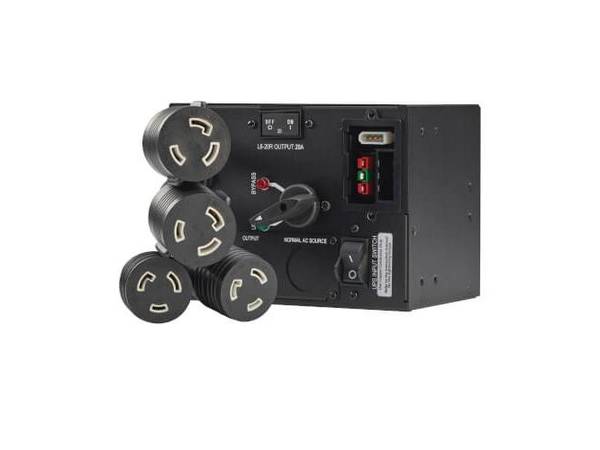

TRIPPLITE SMART ONLINE MAINTENANCE BYPASS FOR SELECT 5KVA TO 6KVA UPS 7486061
SKU
7486061
CA$1,166.24
SMARTONLINE MAINTENANCE BYPASS FOR SELECT 5KVA TO 6KVA SMARTONLINE UPS SYSTEMS, 2 L6-30R AND 2 L6-20R OUTLETS, 0U
Category: Power Accessories
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline Maintenance Bypass for Select 5kVA to 6kVA SmartOnline UPS Systems, 2 L6-30R and 2 L6-20R Outlets, 0U - bypass switch - 6000 VA Device Type: Bypass switch - rack-mountable / external Rack Size: 0U Weight: 5.51 lbs Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 200/208/220/230/240 V Power Capacity: 6000 VA Input Connectors: 1 x hardwire Output connectors: 2 x power NEMA L6-30R ¦ 2 x power NEMA L6-20R Included Accessories: 2 cable glands, mounting hardware Dimensions (WxDxH): 5.6 in x 7 in x 5.1 in Manufacturer Warranty: 2-year warranty - General
Device Type: Bypass switch - rack-mountable / external Height (Rack Units): 0U - Power Device
UPS Technology: On-line Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Connectors: 1 x hardwire Power Output Connectors Details: 2 x power NEMA L6-30R ¦ 2 x power NEMA L6-20R Output Voltage: AC 200/208/220/230/240 V 50/60 Hz Max Electric Current: 25 A Power Capacity: 6000 VA Circuit Protection: Circuit breaker - Miscellaneous
Included Accessories: 2 cable glands, mounting hardware Cables Included: Input/output UPS cable set Features: Metal housing, built-in bypass switch, LED indicators Compliant Standards: CSA, UL 1778, RoHS - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% RH (non-condensing) - Dimensions & Weight
Width: 5.6 in Depth: 7 in Height: 5.1 in Weight: 5.51 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121000
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121000 |
| Part# | TRP-SUPDMBP6K |
| MFG Part# | SUPDMBP6K |
| UPC | 37332282859 |
| Device Type | Bypass switch - rack-mountable / external |
| UPS Technology | On-line |
| Circuit Protection | Circuit breaker |
