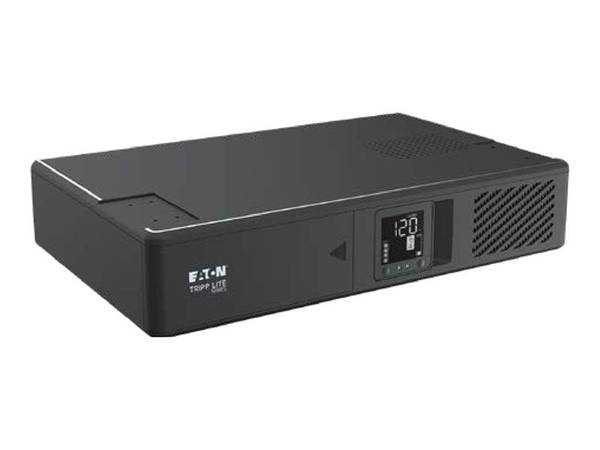

TRIPPLITE SMART1000LCDNC 8215881
SKU
8215881
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series - UPS - 750 Watt - 1000 VA - VRLA Device Type: UPS - external Cord Length: 5 ft Rack Size: 2U Weight: 23.15 lbs Input Voltage: AC 120 V Output Voltage: AC 120 V ± 5% Power Capacity: 750 Watt / 1000 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 10 x power NEMA 5-15R (UPS and surge) Battery: Lead acid valve regulated lead-acid (VRLA) Run Time (Up To): 2 min at full load Networking: RJ-45, NFC, USB Remote Management Protocol: CLI Dimensions (WxDxH): 17.2 in x 8.3 in x 3.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external Height (Rack Units): 2U Cord Length: 5 ft - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 97 - 145 V Frequency Provided: 50/60 Hz Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 10 x power NEMA 5-15R (UPS and surge) Output Voltage: AC 120 V ± 5% - 50/60 Hz Power Capacity: 750 Watt / 1000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 158 Joules - Battery
Technology: Valve regulated lead-acid (VRLA) lead acid Run Time (Up To): 2 min at full load ¦ 7 min at half load Features: Hot-swappable - Networking
Remote Management Interface: RJ-45, NFC, USB Remote Management Protocol: CLI - Expansion / Connectivity
Interfaces: 1 x management (USB) - 24 pin USB-C ¦ 1 x management (Ethernet) - Miscellaneous
Cables Included: Power cable - integrated - 5 ft Features: Plastic housing, audible alarm, LCD display, LED indicators, cold-start function, Automatic Voltage Regulation (AVR) Compliant Standards: CAN/CSA-C22.2 No. 107.3 (Canada), CEC, DOE, EMI FCC Class B, ICES (Canada), Mexico NOM, RoHS, UL 1778 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% RH (non-condensing) - Dimensions & Weight
Width: 17.2 in Depth: 8.3 in Height: 3.5 in Weight: 23.15 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1000LCDNC |
| MFG Part# | SMART1000LCDNC |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Remote Management Protocol | CLI |
