TRIPPLITE SMART1500LCDTXC 8170716
SKU
8170716
CA$1,319.76

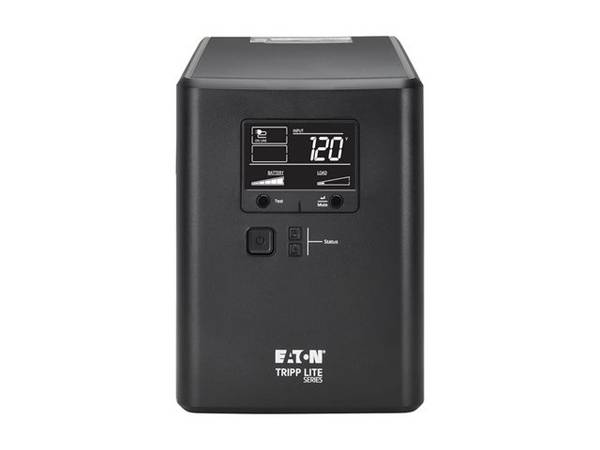

Tripp Lite series 1440VA 1000W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, Tower
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series 1440VA 1000W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, Tower - UPS - 1000 Watt - 1440 VA Device Type: UPS - external Rack Size: 0U Weight: 28.66 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V + 15% / - 18% Power Capacity: 1000 Watt / 1440 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 5 x power NEMA 5-15R (UPS and surge) ¦ 5 x power NEMA 5-15R (surge) Battery: Lead acid expandable Run Time (Up To): 2 min at full load Networking: NFC, RJ-45, USB Remote Management Protocol: CLI Dimensions (WxDxH): 5.9 in x 14.6 in x 7.9 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 3-year warranty - General
Device Type: UPS - external Height (Rack Units): 0U - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 5 x power NEMA 5-15R (UPS and surge) ¦ 5 x power NEMA 5-15R (surge) Output Voltage: AC 120 V + 15% / - 18% - 50/60 Hz Power Capacity: 1000 Watt / 1440 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 380 Joules Circuit Protection: Circuit breaker Efficiency: 98.4% at 100% Load Power Factor (PF): 0.69 - Battery
Type: Expandable Technology: Lead acid Voltage Provided: DC 24 V Run Time (Up To): 2 min at full load ¦ 10 min at half load Recharge Time: 8 hours Transfer Time: 4 ms Features: Valve-regulated - Networking
Remote Management Interface: NFC, RJ-45, USB Remote Management Protocol: CLI - Expansion / Connectivity
Interfaces: 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 24 pin USB-C Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable - integrated - 5 ft Equipment Protection Value: 250000 US Dollars Features: ABS housing, LCD display, brown-out protection, overvoltage protection, audible alarm, Automatic Voltage Regulation (AVR), LED indicators, auto restart, pure sinewave output, controllable load banks, overvoltage correction, undervoltage correction, cold-start function, energy saving green topology, self-test Compliant Standards: CSA, ICES, NOM, RETIE, UL 1778, FCC Part 15 Class B, RoHS - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 90% RH (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 5.9 in Depth: 14.6 in Height: 7.9 in Weight: 28.66 lbs - Dimensions & Weight (Shipping)
Shipping Width: 9.3 in Shipping Depth: 19.5 in Shipping Height: 11.7 in Shipping Weight: 30.86 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1500LCDTXC |
| MFG Part# | SMART1500LCDTXC |
| UPC | 37332281340 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 98.4% at 100% Load |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | CLI |
