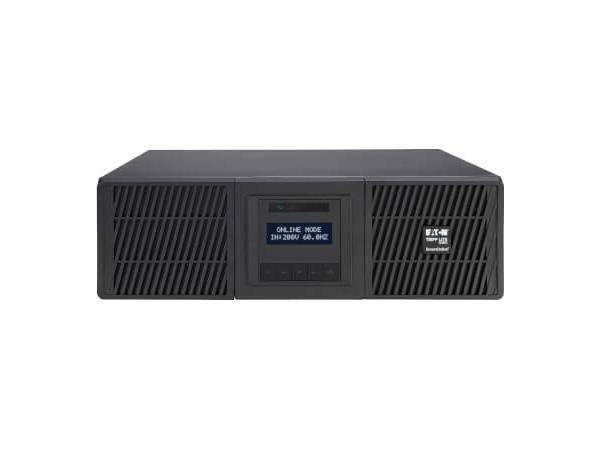

TRIPPLITE SMARTONLINE 5000VA 4500W 208V ONLINE DOUBLE-CONVERSION UPS - 2 L6-20R AND 2 L6-30R OUTLETS, L6-30P INPUT, CYBERSECURE NETWORK CARD 7442763
SKU
7442763
CA$9,718.80
Only 1 left
SMARTONLINE 5000VA 4500W 208V ONLINE DOUBLE-CONVERSION UPS - 2 L6-20R AND 2 L6-30R OUTLETS, L6-30P INPUT, CYBERSECURE NETWORK CARD INCLUDED, EXTENDED RUN, 3U RACK/TOWER UPS 5000VA 4500W 208V NETWORK CARD 3U
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline 5000VA 4500W 208V Online Double-Conversion UPS - 2 L6-20R and 2 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 3U Rack/Tower Battery Backup - UPS - 4500 Watt - 5000 VA - VRLA Device Type: UPS - rack-mountable / external Rack Size: 6U Weight: 200.99 lbs Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 100/110/120/200/208/220/230/240 V ± 1% Power Capacity: 4500 Watt / 5000 VA Input Connectors: 1 x power NEMA 5-15R, power NEMA L6-30P Output connectors: 18 x power NEMA 5-20R ¦ 2 x power NEMA L6-20R ¦ 1 x power NEMA L6-30R Battery: Valve regulated lead-acid (VRLA) Run Time (Up To): 3 min at full load Networking: RS-232, USB, Ethernet Remote Management Protocol: SNMP Included Accessories: Cable gland, network interface card (WEBCARDLXE), rack-mounting hardware, tower support stands, USB cable Dimensions (WxDxH): 17.3 in x 27 in x 10.2 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty Designed For: P/N: BP180RT - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 6U - Power Device
UPS Technology: On-line Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Connectors: 1 x power NEMA 5-15R, power NEMA L6-30P Power Output Connectors Details: 18 x power NEMA 5-20R ¦ 2 x power NEMA L6-20R ¦ 1 x power NEMA L6-30R Output Voltage: AC 100/110/120/200/208/220/230/240 V ± 1% - 50/60 Hz Max Electric Current: 23.3 A Power Capacity: 4500 Watt / 5000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Response Time: 0 ms Circuit Protection: Circuit breaker Efficiency: 98% at 100% Load Power Factor (PF): 0.9 - Battery
Technology: Valve regulated lead-acid (VRLA) Run Time (Up To): 3 min at full load ¦ 11 min at half load Transfer Time: 0 ms - Networking
Remote Management Interface: RS-232, USB, Ethernet Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) - Miscellaneous
Included Accessories: Cable gland, network interface card (WEBCARDLXE), rack-mounting hardware, tower support stands, USB cable Cables Included: Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external Equipment Protection Value: 250000 US Dollars Features: Metal housing, noise protection, automatic voltage regulation, hot-swappable battery, surge/noise protection, single-phase, cold-start function, LCD display, energy saving green topology, double conversion, cooling fan, LED indicators, audible alarm, power failure alarm, crest factor meter, low-battery alert, overload alarm Compliant Standards: cUL, FCC, RoHS - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% RH (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 17.3 in Depth: 27 in Height: 10.2 in Weight: 200.99 lbs - Dimensions & Weight (Shipping)
Shipping Width: 38 in Shipping Depth: 28.5 in Shipping Height: 30 in Shipping Weight: 246.03 lbs - Compatibility Information
Designed For: P/N: BP180RT - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU5000RT |
| MFG Part# | SU5000RT |
| UPC | 786689811723 |
| Device Type | UPS - rack-mountable / external |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Efficiency | 98% at 100% Load |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
