TRIPPLITE TRIPP LITE SINE WAVE SOLAR INVERTER/CHARGER 3200W 48VDC 230V HARDWIRED 7322157
SKU
7322157
CA$2,913.97

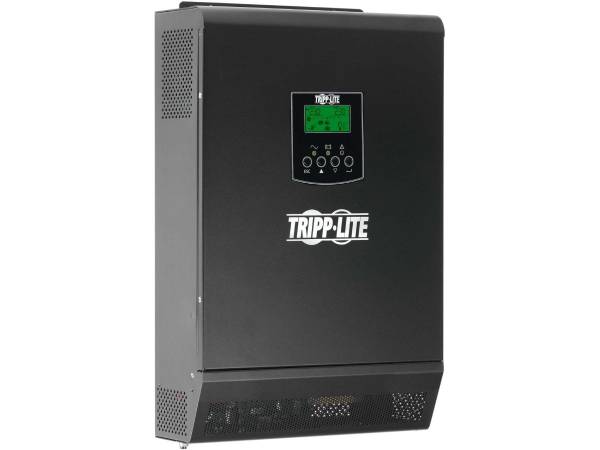

TRIPP LITE SINE WAVE SOLAR INVERTER/CHARGER 3200W 48VDC 230V HARDWIRED
Category: Battery Chargers
- Primary Information
Product Description: Tripp Lite 3200W 48VDC 230V Sine Wave Solar Inverter/Charger - 90A MPPT Solar Charge Controller, Parallel Operation, Hardwire Input/Output - power converter / charger - 3200 Watt Device Type: Power converter / charger - external Weight: 21.1 lbs Input Wiring: 3-phase / 1-phase Input Voltage: AC 220/230/240/ DC 48 V Output Voltage: AC 220/230/240 V Power Capacity: 3200 Watt Input Connectors: 2 x bolt-down terminals, hardwire Included Accessories: DB-15 parallel cable, DB-9 to RJ-45 RS-232 cable, wire retention kit, mounting kit, wired remote control Dimensions (WxDxH): 5.1 in x 4.7 in x 18.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power converter / charger - external - Power Device
Input Voltage: AC 220/230/240/ DC 48 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase / 1-phase Frequency Required: 50/60 Hz Input Connectors: 2 x bolt-down terminals, hardwire Output Voltage: AC 220/230/240 V 50/60 Hz Max Electric Current: 27 A Power Capacity: 3200 Watt Output Waveform: Sinewave Circuit Protection: Circuit breaker - Battery
Transfer Time: 10 ms - Miscellaneous
Included Accessories: DB-15 parallel cable, DB-9 to RJ-45 RS-232 cable, wire retention kit, mounting kit, wired remote control Features: Rugged metal enclosure, built-in mounting brackets, MPPT charge controller, auto transfer switching, overload protection, cooling fan, LCD display, high voltage protection, overheat protection, short-circuit protection, locked fan protection, audible alarm, LED indicators Compliant Standards: REACH, RoHS, UKCA, EN 61000, IEC 62109-1, IEC 62109-2 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 60 dBA - Dimensions & Weight
Width: 5.1 in Depth: 4.7 in Height: 18.5 in Weight: 21.1 lbs - Dimensions & Weight (Shipping)
Shipping Width: 14.8 in Shipping Depth: 7.9 in Shipping Height: 20.7 in Shipping Weight: 25.11 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 26111704
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 26111704 |
| Part# | TRP-APSWX4KP48VMPPT |
| MFG Part# | APSWX4KP48VMPPT |
| Device Type | Power converter / charger - external |
| Circuit Protection | Circuit breaker |
