TRIPPLITE UPS SMART 1000VA 600W 120V 4-OUTLETS LCD 7170736

SKU
7170736

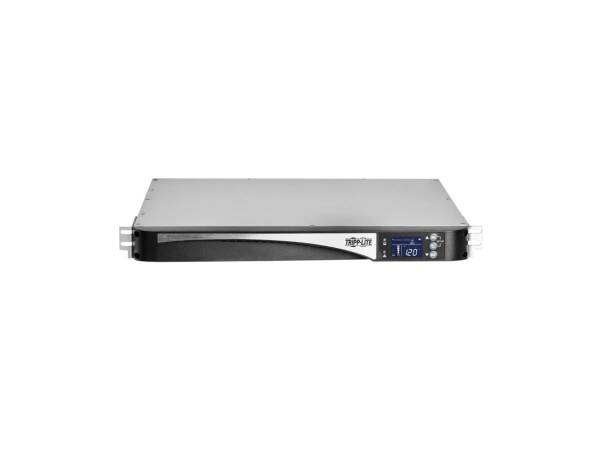

main product photo
CA$1,390.76
SmartPro 1000VA 600W 120V Line-Interactive Sine Wave UPS, AVR - 4 NEMA 5-15R Outlets, Network Card Option, LCD, USB, 1U Rack/Tower - 2-year warranty, 3 year with registration





buy now pay later
Category: UPS
  • Primary Information
    Product Description: Tripp Lite UPS 1000VA 600W 120V Line-Interactive Sine Wave UPS AVR 4 5-15R Outlets Network Card Option LCD 1U Rack/Tower - UPS - 600 Watt - 1000 VA
    Device Type: UPS - rack-mountable
    Rack Size: 19" - 1U
    Weight: 32.63 lbs
    Input Wiring: 1-phase
    Input Voltage: AC 120 V
    Output Voltage: AC 100/120/127 V ± 5%
    Power Capacity: 600 Watt / 1000 VA
    Input Connectors: 1 x power NEMA 5-15P
    Output connectors: 4 x power NEMA 5-15R
    Run Time (Up To): 3 min at full load
    Networking: USB
    Included Accessories: EPO/ROO connector
    Dimensions (WxDxH): 17.3 in x 21.8 in x 1.7 in
    Environmental Standards: ENERGY STAR
    Manufacturer Warranty: 3-year warranty with product registration
    Designed For: Tripp Lite 1.4kW, On-Site UPS Installation Service, Select 1-3, PDU Basic 120V 1.8kW, PDU Dual Source Hot Swap 100-127V 12, PDU Hot-Swap with Manual Bypass 120V 15, PDU Metered 120V 15, PDU Monitored 120V 15, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5; SmartRack 4
  • General
    Device Type: UPS - rack-mountable
    Height (Rack Units): 1U
    Rack Size: 19"
  • Power Device
    UPS Technology: Line interactive
    Input Voltage: AC 120 V
    Frequency Provided: 50/60 Hz
    Input Voltage Margin: + 6% / - 10%
    Input Wiring: 1-phase
    Input Connectors: 1 x power NEMA 5-15P
    Power Output Connectors Details: 4 x power NEMA 5-15R
    Output Voltage: AC 100/120/127 V ± 5% - 50/60 Hz
    Max Electric Current: 15 A
    Power Capacity: 600 Watt / 1000 VA
    Output Waveform: Sinewave
    Surge Suppression: Yes
    Surge Energy Rating: 540 Joules
    Circuit Protection: Circuit breaker
    Efficiency: 97% at 100% Load
    Power Factor (PF): 0.6
  • Battery
    Voltage Provided: DC 36 V
    Run Time (Up To): 3 min at full load ¦ 10 min at half load
    Recharge Time: 6 hours
    Transfer Time: 8 ms
    Features: Hot-swappable, valve-regulated
  • Networking
    Remote Management Interface: USB
  • Expansion / Connectivity
    Interfaces: 1 x USB ¦ 1 x EPO (emergency power off)
    Expansion Slots: 1 (total) / 1 (free) x expansion slot
  • Miscellaneous
    Included Accessories: EPO/ROO connector
    Cables Included: Power cable - integrated - 6 ft ¦ USB cable
    Rack Mounting Kit: Included
    Equipment Protection Value: 250000 US Dollars
    Features: Tower mountable, back panel grounding lug, fan ready, isolated HID USB port, VMware Ready, Automatic Voltage Regulation (AVR), LCD display, VRLA battery support, Auto Probe, hot-swappable batteries, pure sinewave output, cold-start function, audible alarm, battery backup capability, remote ON/OFF function, emergency power off, undervoltage correction, overvoltage correction
    Compliant Standards: RoHS, CAN/CSA C22.2 No. 107.3, Mexico NOM, RETIE, UL 1778, EMI
  • Software / System Requirements
    Software Included: TrippLite PowerAlert
  • Sustainability Information
    ENERGY STAR: Yes
  • Manufacturer Warranty
    Service & Support: Limited warranty - 3 years
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 0 - 95% (non-condensing)
    Sound Emission: 45 dBA
  • Dimensions & Weight
    Width: 17.3 in
    Depth: 21.8 in
    Height: 1.7 in
    Weight: 32.63 lbs
  • Compatibility Information
    Designed For: Tripp Lite 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P Plug, 0U, TAA, 1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P, 0U, TAA, 1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Normal Business Hours, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Outside Business Hours, PDU Basic 120V 1.44kW 15A 5-15R 14 Outlet 5-15P Vertical 0URM, PDU Basic 120V 1.8kW 15A 5-15R 13 Outlet 5-15P Horizontal 1URM, PDU Dual Source Hot Swap 100-127V 12A 8 5-15R Horizontal 2URM, PDU Hot-Swap with Manual Bypass 120V 15A Single-Phase - 6 NEMA 5-15R Outlets, 2 5-15P Inputs, 1U Rack/Wall, PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM, PDU Metered 120V 15A 5-15R 16 Outlet 5-15P Vertical 0URM, PDU Monitored 120V 15A 5-15R 8 Outlet 5-15P Horizontal 1URM, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5 ¦ Tripp Lite SmartRack 4-Post Rack-Mount Shelf Kit Universal for Wallmount Racks 1U
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 39121011
More Information
BRANDS TRIPP LITE
UNSPSC 39121011
Part# TRP-SMC1000RT1U
MFG Part# SMC1000RT1U
UPC 37332239303
Device Type UPS - rack-mountable
UPS Technology Line interactive
Surge Suppression Yes
Efficiency 97% at 100% Load
Circuit Protection Circuit breaker
