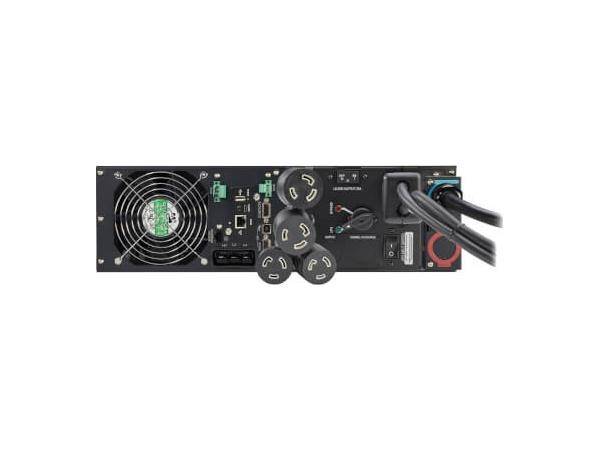

TRIPPLITE UPS W MAINTENANCE BYPASS PANEL 5000VA 4500W 208V CYBERSECURE NETWORK CARD 7486065
SKU
7486065
CA$10,707.84
Only 1 left
SMARTONLINE 5000VA 4500W 208V ONLINE DOUBLE-CONVERSION UPS WITH MAINTENANCE BYPASS - L6-20R/L6-30R OUTLETS, L6-30P INPUT, CYBERSECURE NETWORK CARD INCLUDED, EXTENDED RUN, 3U RACK/TOWER
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series - UPS - 4500 Watt - 5000 VA - VRLA Device Type: UPS - rack-mountable Cord Length: 10 ft Rack Size: 3U Weight: 111.51 lbs Input Wiring: 1-phase Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 4500 Watt / 5000 VA Input Connectors: 1 x power NEMA L6-30P, hardwire Output connectors: 2 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R Battery: Expandable valve regulated lead-acid (VRLA) Batteries Qty: 4 Run Time (Up To): 3 min at full load Included Accessories: SUPDMBP6K maintenance bypass, network interface card (WEBCARDLXE), USB cable, hardwire connection cable gland, tower support stands, maintenance bypass mounting hardware Dimensions (WxDxH): 17.3 in x 34 in x 5.1 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty Designed For: P/N: BP180RT - General
Device Type: UPS - rack-mountable Height (Rack Units): 3U Cord Length: 10 ft - Power Device
UPS Technology: On-line Input Voltage: AC 208 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L6-30P, hardwire Power Output Connectors Details: 2 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R Output Voltage: AC 208 V 50/60 Hz Max Electric Current: 23.3 A Power Capacity: 4500 Watt / 5000 VA Output Waveform: Sinewave Efficiency: 93% Power Factor (PF): 0.9 - Battery
Type: Expandable Quantity: 4 Technology: Valve regulated lead-acid (VRLA) Voltage Provided: AC 120/208 V Run Time (Up To): 3 min at full load ¦ 11 min at half load Transfer Time: 0 ms - Miscellaneous
Included Accessories: SUPDMBP6K maintenance bypass, network interface card (WEBCARDLXE), USB cable, hardwire connection cable gland, tower support stands, maintenance bypass mounting hardware Cables Included: Power cable (NEMA L6-30P) 10 ft Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Surge protection, surge/noise protection, cold-start function, transient surge protection, double conversion, internal bypass, LCD display, VRLA battery support, audible alarm, fault alarm, low battery alarm, overload alarm, LED indicators, integrated network management, energy saving green topology, Remote Emergency Power Off (REPO), cooling fan Compliant Standards: CAN/CSA-C22.2 No. 107.3 (Canada), cTUVus, EN 62040-2, FCC, FCC Part 15 B Class A, NOM, RoHS, UL 1778 - Software / System Requirements
Software Included: TrippLite PowerAlert - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% RH (non-condensing) - Dimensions & Weight
Width: 17.3 in Depth: 34 in Height: 5.1 in Weight: 111.51 lbs - Compatibility Information
Designed For: P/N: BP180RT - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU5000RTMB |
| MFG Part# | SU5000RTMB |
| UPC | 37332286338 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
| Type | Expandable |
| Efficiency | 93% |
