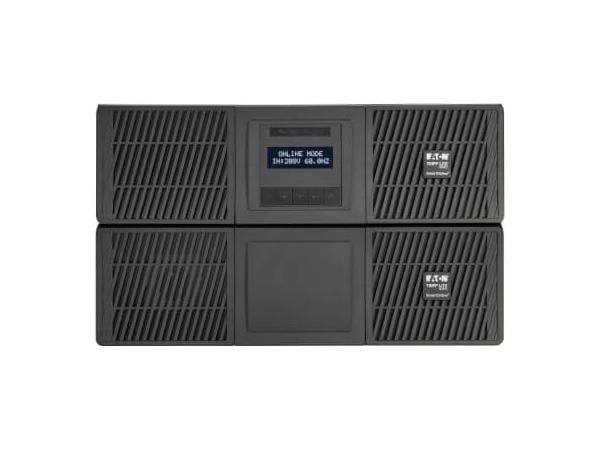

TRIPPLITE UPS W STEPDOWN TRANSFORMER 6000VA 5400W 120/208V CYBERSECURE NETWORK CARD 7486058
SKU
7486058
CA$12,244.91
SMARTONLINE 6000VA 5400W 120/208V ONLINE DOUBLE-CONVERSION UPS WITH STEPDOWN TRANSFORMER - 18 5-20R, 2 L6-20R AND 1 L6-30R OUTLETS, L6-30P INPUT, CYBERSECURE NETWORK CARD INCLUDED, EXTENDED RUN, 6U
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline 6000VA 5400W 120/208V Online Double-Conversion UPS with Stepdown Transformer - 18 5-20R, 2 L6-20R and 1 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U - UPS - 5.4 kW - 6000 VA - VRLA - with SUTFMR 120V stepdown transformer Device Type: UPS - rack-mountable / external Rack Size: 19" - 6U Weight: 200.99 lbs Input Wiring: 1-phase Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 120/200/208/220/230/240 V ± 1% Power Capacity: 5.4 kW / 6000 VA Input Connectors: 1 x hardwire Output connectors: 1 x power NEMA L6-30R (surge) ¦ 2 x power NEMA L6-20R (surge) ¦ 18 x power NEMA 5-20R (surge) Battery: Expandable valve regulated lead-acid (VRLA) Batteries Qty: 1 (installed) / 4 (supported) Run Time (Up To): 3 min at full load Networking: RS-232, USB Remote Management Protocol: SNMP Included Accessories: Mounting hardware, cable gland, 4-post rail kit Dimensions (WxDxH): 17.3 in x 27 in x 10.2 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty Bundled with: SUTFMR 120V stepdown transformer Designed For: P/N: BP180RT - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 6U Rack Size: 19" Bundled with: SUTFMR 120V stepdown transformer - Power Device
UPS Technology: On-line Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x hardwire Power Output Connectors Details: 1 x power NEMA L6-30R (surge) ¦ 2 x power NEMA L6-20R (surge) ¦ 18 x power NEMA 5-20R (surge) Output Voltage: AC 120/200/208/220/230/240 V ± 1% - 50/60 Hz Power Capacity: 5.4 kW / 6000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Response Time: 0 ms Efficiency: 93% at 100% Load, 98% at 100% Load Eco mode Power Factor (PF): 0.9 Total Harmonic Distortion (THD): 2 % - Battery
Type: Expandable Quantity: 1 (installed) / 4 (supported) Technology: Valve regulated lead-acid (VRLA) Voltage Provided: 180 V Run Time (Up To): 3 min at full load ¦ 8 min at half load Transfer Time: 0 ms Features: Hot-swappable - Networking
Remote Management Interface: RS-232, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x USB - 4 pin USB Type A ¦ 1 x console - Micro-USB 2.0 ¦ 1 x management - RJ-45 ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - USB 2.0 type B ¦ 1 x battery detection - RJ-11 ¦ 1 x RPO - 3 pin terminal block ¦ 1 x ROO - 3 pin terminal block ¦ 1 x contacts - 9 pin D-Sub (DB-9) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Included Accessories: Mounting hardware, cable gland, 4-post rail kit Cables Included: Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Surge protection, metal housing, cooling fan, double conversion, LCD display, audible alarm, LED indicators, cold-start function, Automatic Voltage Regulation (AVR), Eco-Mode, emergency power off, remote reboot Compliant Standards: cUL, EN 62040-2, NOM, FCC Part 15 A, FCC, RoHS - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% RH (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 17.3 in Depth: 27 in Height: 10.2 in Weight: 200.99 lbs - Dimensions & Weight (Shipping)
Shipping Width: 28.5 in Shipping Depth: 38 in Shipping Height: 30 in Shipping Weight: 245.81 lbs - Compatibility Information
Designed For: P/N: BP180RT - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU6000RTF |
| MFG Part# | SU6000RTF |
| UPC | 37332286376 |
| Device Type | UPS - rack-mountable / external |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 93% at 100% Load, 98% at 100% Load Eco mode |
| Remote Management Protocol | SNMP |
