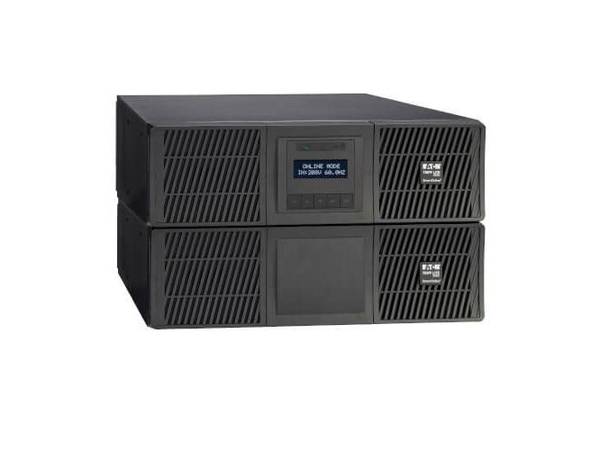

TRIPPLITE UPS W STEPDOWN TRANSFORMER AND MAINTENANCE BYPASS PANEL 5000VA 4500W 7486057
SKU
7486057
CA$12,407.15
SMARTONLINE 5000VA 4500W 120/208V ONLINE DOUBLE-CONVERSION UPS WITH STEPDOWN TRANSFORMER AND MAINTENANCE BYPASS - 5-20R/L6-20R/L6-30R OUTLETS, L6-30P INPUT, NETWORK CARD INCLUDED, EXTENDED RUN, 6U
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series - UPS - 4500 Watt - 5000 VA - VRLA Device Type: UPS - rack-mountable Rack Size: 6U Weight: 206.11 lbs Input Wiring: 1-phase Input Voltage: AC 120-208 V Output Voltage: AC 120-208 V Power Capacity: 4500 Watt / 5000 VA Input Connectors: 1 x power NEMA L6-30P, hardwire Output connectors: 18 x power NEMA 5-20R ¦ 2 x power NEMA L6-20R ¦ 1 x power NEMA L6-30R Battery: Expandable valve regulated lead-acid (VRLA) Batteries Qty: 4 Included Accessories: SUPDMBP6K maintenance bypass, network interface card (WEBCARDLXE), USB cable, hardwire connection cable gland, tower support stands, maintenance bypass mounting hardware, UPS and transformer rack-mounting hardware (2x 9RK), step-down transformer Dimensions (WxDxH): 17.3 in x 34 in x 10.2 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 6U - Power Device
UPS Technology: On-line Input Voltage: AC 120-208 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L6-30P, hardwire Power Output Connectors Details: 18 x power NEMA 5-20R ¦ 2 x power NEMA L6-20R ¦ 1 x power NEMA L6-30R Output Voltage: AC 120-208 V 50/60 Hz Max Electric Current: 23.3 A Power Capacity: 4500 Watt / 5000 VA Output Waveform: Sinewave Efficiency: 93% Power Factor (PF): 0.9 - Battery
Type: Expandable Quantity: 4 Technology: Valve regulated lead-acid (VRLA) Voltage Provided: AC 120/208 V Features: Sealed - Miscellaneous
Included Accessories: SUPDMBP6K maintenance bypass, network interface card (WEBCARDLXE), USB cable, hardwire connection cable gland, tower support stands, maintenance bypass mounting hardware, UPS and transformer rack-mounting hardware (2x 9RK), step-down transformer Cables Included: Power cable (NEMA L6-30P) 10 ft Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Surge protection, double conversion, internal bypass, LCD display, VRLA battery support, audible alarm, fault alarm, low battery alarm, overload alarm, LED indicators, integrated network management, cold-start function, Remote Emergency Power Off (REPO), energy saving green topology Compliant Standards: NOM, cUL Listed, IEC/EN 62040-2, RoHS, Energy Star, FCC Class A certified, FCC - Software / System Requirements
Software Included: TrippLite PowerAlert - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% RH (non-condensing) - Dimensions & Weight
Width: 17.3 in Depth: 34 in Height: 10.2 in Weight: 206.11 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU5000RTFMB |
| MFG Part# | SU5000RTFMB |
| UPC | 37332286369 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
| Type | Expandable |
| Efficiency | 93% |
