Upgrade or expand a desktop computer/servers USB connectivity by adding 4x USB-A ports via PCI Express - 4x USB controllers up to 5Gbps per port - PCI 8170986
SKU
8170986
CA$151.99
Upgrade or expand a desktop computer/servers USB connectivity by adding 4x USB-A ports via PCI Express - 4x USB controllers up to 5Gbps per port - PCIe 2.0 x4; 5V 1.5A - Supports Windows/Linux and Intel/AMD
Category: Others Accessories
- Primary Information

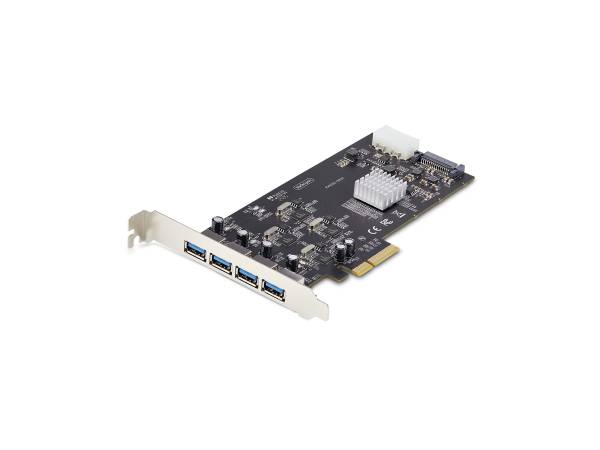

Product Description: StarTech.com 4-Port USB-A PCIe Card, USB 3.2 5Gbps, 4x USB Controllers - USB adapter - PCIe 2.0 x4 - USB 3.2 Gen 1 x 4 Device Type: USB adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express 2.0 x4 PCI Specification Revision: PCIe 2.0 Ports: USB 3.2 Gen 1 x 4 Dimensions (WxDxH): 0.7 in x 6.7 in x 4.7 in Weight: 3.53 oz Data Link Protocol: USB 3.2 Gen 1 Data Transfer Rate: 5 Gbps Processor: Renesas / Diodes Incorporated UPD720202 / PI7C9X2G608 Compliant Standards: USB 3.2 Gen 1 Color: Black System Requirements: Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2, Linux 2.6.31 or later LTS versions only Manufacturer Warranty: 2-year warranty Designed For: P/N: FCREADMICRO3V2, USB315AC1M, USB3S2SAT3CB - General
Device Type: USB adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express 2.0 x4 PCI Specification Revision: PCIe 2.0 - Networking
Ports: USB 3.2 Gen 1 x 4 Connectivity Technology: Wired Data Link Protocol: USB 3.2 Gen 1 Data Transfer Rate: 5 Gbps Features: USB Power Delivery (up to 10 watt), UASP, bus powered Compliant Standards: USB 3.2 Gen 1 - Processor / Memory
Processor: Renesas / Diodes Incorporated UPD720202 / PI7C9X2G608 - Expansion / Connectivity
Interfaces: 4 x USB 3.2 Gen 1 - 9 pin USB Type A - female (external) ¦ 1 x LP4 - 4 pin power - female (internal) ¦ 1 x SATA power - 15 pin Serial ATA power - male (internal) - Miscellaneous
Included Accessories: Low-profile bracket Compliant Standards: WEEE Color: Black - Software / System Requirements
OS Required: Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2, Linux 2.6.31 or later LTS versions only - Dimensions & Weight
Width: 0.7 in Depth: 6.7 in Height: 4.7 in Weight: 3.53 oz - Dimensions & Weight (Shipping)
Shipping Width: 1.5 in Shipping Depth: 8.1 in Shipping Height: 5.7 in Shipping Weight: 3.88 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 90% RH (non-condensing) - Compatibility Information
Designed For: P/N: FCREADMICRO3V2, USB315AC1M, USB3S2SAT3CB - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211600
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43211600 |
| Part# | STC-P5Q4A-USB-CARD |
| MFG Part# | P5Q4A-USB-CARD |
| UPC | 65030912761 |
| Device Type | USB adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 5 Gbps |
| Form Factor | Plug-in card |
| Data Link Protocol | USB 3.2 Gen 1 |
| Color | Black |
