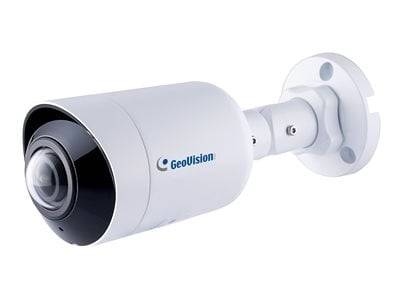

USA VISION AI 180 PANORAMIC 5MP H.265 SUPER LOW LUX WDR PRO IR FIXED BULLET IP CAMERA 7463676
SKU
7463676
CA$513.68
AI 180 PANORAMIC 5MP H.265 SUPER LOW LUX WDR PRO IR FIXED BULLET IP CAMERA
Category: PC & Network Cameras
- Primary Information
Product Description: GeoVision GV-TBLP5800 - network panoramic camera - bullet Device Type: Network panoramic camera - fixed - bullet - outdoor - ingress protection Audio: Yes: one-way audio capability, built-in microphone Dimensions (WxDxH): 2.8 in x 7.8 in x 2.8 in Weight: 14.81 oz Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 2880 x 1620 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: PS CMOS - 1/2.7" - 5 MP Minimum Illumination: 0.01 lux - color - F2.0 - AGC on ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 1.68 mm Lens Mounting: M12 mount Focus Adjustment: Fixed focus Lens Iris: F/2.0 - fixed iris Panning Range (degree): 0 to 360 Tilting Range (degree): 0 to 90 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 12 V / PoE Features: Auto white balance, manual white balance, auto gain control, manual gain control, Wide Dynamic Range (WDR) Pro, infrared-cut filter, 37.8m detect distance, 15.1m observe distance, 7.6m recognize distance, 3.8m identify distance, 3 video streams, audio alarm, tamper-detection, flickerless, 3D Noise Reduction Technology, image flip, image mirror, 180° image rotation, intrusion detection, cross line detection, object enter area detection, object leave area detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Super Low Lux, Intelligent IR Technology, Defog, text overlay, Privacy Mask Function Manufacturer Warranty: 2-year warranty Environmental Parameters (operating): -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity - General
Device Type: Network panoramic camera Audio Support: Yes: one-way audio capability, built-in microphone Audio Formats: G.711 Form Factor: Bullet Connectivity Technology: Wired Width: 2.8 in Depth: 7.8 in Height: 2.8 in Weight: 14.81 oz - Camera
Type: Color - Day&Night - fixed - outdoor - ingress protection Digital Video Format: H.264, H.265, MJPEG Max Digital Video Resolution: 2880 x 1620 Motion Detection: Yes Exposure Range: 1 sec - 1/100000 sec Minimum Illumination: 0.01 lux - color - F2.0 - AGC on ¦ 0 lux - IR Infrared LEDs: 2 Infrared Distance: 66 ft Digital Video Capture Resolution: 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 480, 640 x 360, 704 x 288, 352 x 288 Frame Rate (max): 30 frames per second Features: Auto white balance, manual white balance, auto gain control, manual gain control, Wide Dynamic Range (WDR) Pro, infrared-cut filter, 37.8m detect distance, 15.1m observe distance, 7.6m recognize distance, 3.8m identify distance, 3 video streams, audio alarm, tamper-detection, flickerless, 3D Noise Reduction Technology, image flip, image mirror, 180° image rotation, intrusion detection, cross line detection, object enter area detection, object leave area detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Super Low Lux, Intelligent IR Technology, Defog, text overlay, Privacy Mask Function - Image Sensor
Type: 5 MP PS CMOS 1/2.7" - Lens Construction
Type: M12 mount - fixed focal Focal Length: 1.68 mm Lens Iris: F/2.0 fixed iris Focus Adjustment: Fixed focus Horizontal Field of View (degree): 180 - Panning
Range (degree): 0 to 360 - Tilting
Range (degree): 0 to 90 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IPv4, IPv6, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP - Expansion / Connectivity
Ports: LAN - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC UHS-I Card - Miscellaneous
Included Accessories: Waterproof rubber set, screw kit, drill hole template, torx wrench Compliant Standards: IEEE 802.1x, IEEE 802.3af, IP67, FCC, LVD, RoHS - Power
Power Requirements: DC 12 V / PoE - 1.25 A - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GEOVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | GEO-84-TBLP580-0010 |
| MFG Part# | 84-TBLP580-0010 |
| UPC | 4711280521852 |
| Max Resolution | 2880 x 1620 |
| Device Type | Network panoramic camera |
| Connectivity Technology | Wired |
| Form Factor | Bullet |
| Type | M12 mount - fixed focal |
| Focus Adjustment | Fixed focus |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2880 x 1620, 352 x 288, 640 x 360, 640 x 480, 704 x 288, 720 x 576 |
| Focal Length | 1.68 mm |
