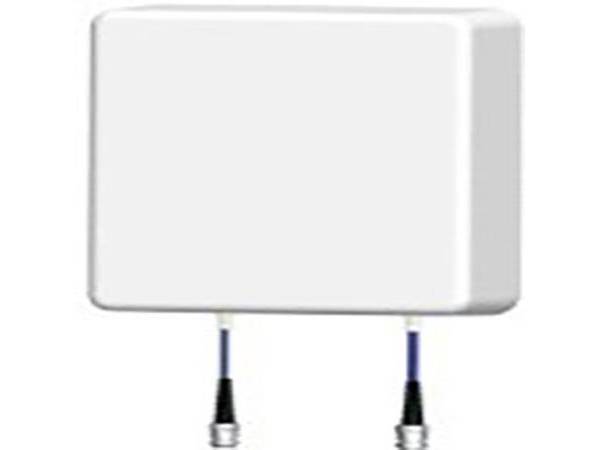

VENTEV UWB 2X2 MIMO DIRECT ANT LOW-PIM 4.3-10F 7506743
SKU
7506743
Category: Antennas
- Primary Information
Product Description: Ventev antenna - 2 x 2 MIMO, Low-PIM Product Type: Antenna - 2 x 2 MIMO, Low-PIM Package Content: Articulating bracket Dimensions (WxDxH): 9.8 in x 3.4 in x 12 in Weight: 3.31 lbs Product Material: Acrylonitrile butadiene styrene (ABS) Color: White Form Factor: Panel Intended For: Cellular Antenna Placing / Mounting: Indoor / outdoor, wall-mountable, pole mount Compatibility: GSM, PCS, CDMA, LTE, 3G, 4G, 5G Frequency Range: 617 - 6000 MHz Gain: 6 dBi (for 698 - 960 MHz), 7 dBi (for 1710 - 2700 MHz), 5.5 dBi (for 617 - 698 MHz), 8 dBi (for 3300 - 4200 MHz), 8 dBi (for 4900 - 6000 MHz) Directivity: Directional Compliant Standards: RoHS, UL 94 Manufacturer Warranty: 2-year warranty - General
Product Type: Antenna - 2 x 2 MIMO, Low-PIM Package Content: Articulating bracket Product Material: Acrylonitrile butadiene styrene (ABS) Width: 9.8 in Depth: 3.4 in Height: 12 in Weight: 3.31 lbs Enclosure Color: White - Antenna
Form Factor: Panel Intended For: Cellular Antenna Placing / Mounting: Indoor / outdoor, wall-mountable, pole mount Compatibility: GSM, PCS, CDMA, LTE, 3G, 4G, 5G Frequency Range: 617 - 6000 MHz Gain: 6 dBi (for 698 - 960 MHz), 7 dBi (for 1710 - 2700 MHz), 5.5 dBi (for 617 - 698 MHz), 8 dBi (for 3300 - 4200 MHz), 8 dBi (for 4900 - 6000 MHz) Directivity: Directional Voltage Standing Wave Ratio (VSWR): 1.8:1 (for 617 MHz - 698 MHz), 1.8:1 (for 698 MHz - 960 MHz), 1.8:1 (for 1710 MHz - 2700 MHz), 1.8:1 (for 3300 MHz - 4200 MHz), 2.0:1 (for 4900 MHz - 6000 MHz) Horizontal Beamwidth: 80° (at 617 - 698 MHz), 85° (at 698 to 960 MHz), 70° (at 1710 - 2700 MHz), 75° (at 3300 - 4200 MHz), 50° (at 4900 - 6000 MHz) Vertical Beamwidth: 60° (at 1710 - 2700 MHz), 70° (at 617 - 698 MHz), 75° (at 698 to 960 MHz), 80° (at 3300 - 4200 MHz), 35° (at 4900 - 6000 MHz) Impedance: 50 Ohm - Cabling & Wiring
Connector Provided: 2 x 4.3-10 connector female - Miscellaneous
Features: Rugged, sun protection, rain protection, snow protection, dust protection, wind protection, 2x2 MIMO technology Compliant Standards: RoHS, UL 94 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Humidity Range Operating: Up to 95% - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43221706
| BRANDS | VENTEV |
|---|---|
| UNSPSC | 43221706 |
| Part# | TSC-VN-XLHM6-XD4F |
| MFG Part# | VN-XLHM6-XD4F |
| Impedance | 50 Ohm |
| Form Factor | Panel |
| Product Material | Acrylonitrile butadiene styrene (ABS) |
| Product Type | Antenna - 2 x 2 MIMO, Low-PIM |
| Color | White |
