VERTIV 1500 VA/ 1350 WATTS, 120 VAC, 5-15P INPUT CONNECTION 11903443
SKU
11903443
Category: UPS
- Primary Information
Product Description: Liebert PSI5 PSI5-1500RT120 - UPS - 1350 Watt - 1500 VA Device Type: UPS - rack-mountable / external Rack Size: 2U Weight: 42.55 lbs Input Voltage: AC 120 V Output Voltage: AC 100/110/115/120/125 V Power Capacity: 1350 Watt / 1500 VA Input Connectors: 1 x power NEMA 5-15 Output connectors: 6 x power NEMA 5-15R - 120 V Battery: Lead acid expandable - 7 Ah Batteries Qty: 4 Run Time (Up To): 4 min at full load Included Accessories: Floor stand Dimensions (WxDxH): 17.2 in x 20.1 in x 3.5 in - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 2U - Power Device
Input Voltage: AC 120 V Input Voltage Range: AC 75 - 146 V Frequency Provided: 60 Hz ± 1% Input Voltage Margin: ± 5% Frequency Required: 55 - 65 Hz Input Connectors: 1 x power NEMA 5-15 Power Output Connectors Details: 6 x power NEMA 5-15R - 120 V Output Voltage: AC 100/110/115/120/125 V 60 Hz Power Capacity: 1350 Watt / 1500 VA Dataline Surge Protection: Network/phone line - RJ-45 - 1 input line / 1 output line Output Waveform: Sinewave Surge Suppression: Yes Circuit Protection: Circuit breaker Efficiency: 96% - Battery
Type: Expandable Quantity: 4 Technology: Lead acid Voltage Provided: 12 V Capacity: 7 Ah Run Time (Up To): 4 min at full load ¦ 6 min at 75% load ¦ 12 min at half load ¦ 28 min at 25% load ¦ 81 min at 10% load Recharge Time: 4 hours Transfer Time: 6 ms Features: Valve-regulated - Expansion / Connectivity
Interfaces: 1 x management - 4 pin USB Type B ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x Liebert IntelliSlot - Miscellaneous

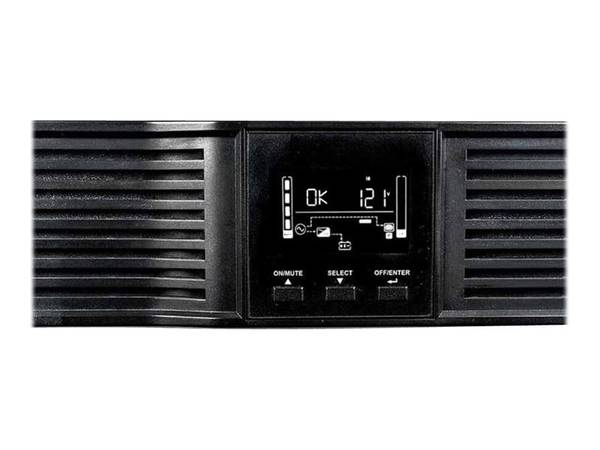

Included Accessories: Floor stand Cables Included: Power cable - integrated - 10 ft ¦ USB cable - external - 6.6 ft Rack Mounting Kit: Included Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overcurrent protection, overload protection, short-circuit protection, 90° rotating plug, 3 programmable sockets Compliant Standards: UL 1989, ANSI C62.41 Category A, Level 3, 1372J - Software / System Requirements
Software Included: Liebert MultiLink Shutdown - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 20 - 90% (non-condensing) Sound Emission: 55 dB - Dimensions & Weight
Width: 17.2 in Depth: 20.1 in Height: 3.5 in Weight: 42.55 lbs - Dimensions & Weight (Shipping)
Shipping Width: 10.2 in Shipping Depth: 26.5 in Shipping Height: 21.7 in Shipping Weight: 51.81 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | VERTIV |
|---|---|
| UNSPSC | 39121011 |
| Part# | GTM-PSI5-1500RT120 |
| MFG Part# | PSI5-1500RT120 |
| UPC | 812105028717 |
| Device Type | UPS - rack-mountable / external |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 96% |
| Circuit Protection | Circuit breaker |
