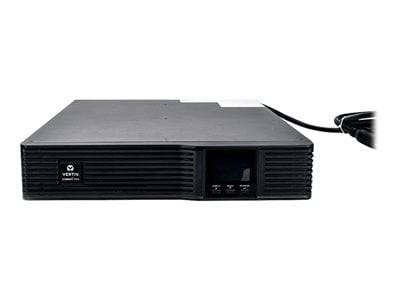

VERTIV 4250 VA/ 3825 WATTS, 208 VAC, L6-30P INPUT CONNECTION 11903550
SKU
11903550
Category: UPS
- Primary Information
Product Description: Liebert PSI5 PSI5-5000RT208 - UPS - 3825 Watt - 5000 VA Device Type: UPS - rack-mountable / external Rack Size: 2U Weight: 87.74 lbs Input Voltage: AC 208 V Output Voltage: AC 200/208/240 V Power Capacity: 3825 Watt / 5000 VA Input Connectors: 1 x power NEMA L6-30P Output connectors: 4 x power NEMA L6-30R - 208 V Battery: Lead acid expandable - 10 Ah Batteries Qty: 6 Run Time (Up To): 3 min at full load Included Accessories: Floor stand Dimensions (WxDxH): 17.2 in x 24.8 in x 3.5 in - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 2U - Power Device
Input Voltage: AC 208 V Input Voltage Range: AC 150 - 281 V Frequency Provided: 60 Hz ± 1% Input Voltage Margin: ± 5% Frequency Required: 55 - 65 Hz Input Connectors: 1 x power NEMA L6-30P Power Output Connectors Details: 4 x power NEMA L6-30R - 208 V Output Voltage: AC 200/208/240 V 60 Hz Power Capacity: 3825 Watt / 5000 VA Dataline Surge Protection: Network/phone line - RJ-45 - 1 input line / 1 output line Output Waveform: Sinewave Surge Suppression: Yes Circuit Protection: Circuit breaker Efficiency: 96% - Battery
Type: Expandable Quantity: 6 Technology: Lead acid Voltage Provided: 12 V Capacity: 10 Ah Run Time (Up To): 3 min at full load ¦ 4 min at 75% load ¦ 10 min at half load ¦ 26 min at 25% load ¦ 69 min at 10% load Recharge Time: 4 hours Transfer Time: 6 ms Features: Valve-regulated - Expansion / Connectivity
Interfaces: 1 x management - 4 pin USB Type B ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x Liebert IntelliSlot - Miscellaneous
Included Accessories: Floor stand Cables Included: Power cable - integrated - 10 ft ¦ USB cable - external - 6.6 ft Rack Mounting Kit: Included Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overcurrent protection, overload protection, short-circuit protection, 1 programmable sockets Compliant Standards: UL 1989, EN 61000-4-5 Level 3, 2064J - Software / System Requirements
Software Included: Liebert MultiLink Shutdown - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 20 - 90% (non-condensing) Sound Emission: 55 dB - Dimensions & Weight
Width: 17.2 in Depth: 24.8 in Height: 3.5 in Weight: 87.74 lbs - Dimensions & Weight (Shipping)
Shipping Width: 10.2 in Shipping Depth: 30.8 in Shipping Height: 21.7 in Shipping Weight: 98.77 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | VERTIV |
|---|---|
| UNSPSC | 39121011 |
| Part# | GTM-PSI5-5000RT208 |
| MFG Part# | PSI5-5000RT208 |
| UPC | 812105028748 |
| Device Type | UPS - rack-mountable / external |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 96% |
| Circuit Protection | Circuit breaker |
