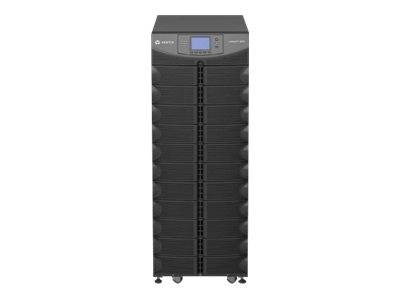

VERTIV APS 15KVA SCALABLE TO 11903867
SKU
11903867
Category: UPS
- Primary Information
Product Description: Liebert APS - UPS - 13.5 kW - 15000 VA Device Type: UPS - external Weight: 919.98 lbs Input Wiring: 1-phase Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 100/110/115/120/173/190/199/200/208/220/230/240 V ± 3% Power Capacity: 13.5 kW / 15000 VA Power Redundancy: Optional Input Connectors: 1 x hardwire 3-wire Output connectors: 1 x hardwire Battery: Expandable Run Time (Up To): 15 min at full load Networking: Ethernet 10/100, RS-485 Remote Management Protocol: SNMP, Modbus Dimensions (WxDxH): 17.3 in x 33.5 in x 48.8 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external - Power Device
UPS Technology: On-line Supported Power Modules Qty: 16 Power Redundancy: Optional Power Redundancy Scheme: N+1 (with optional power supply) Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 40 - 70 Hz Input Connectors: 1 x hardwire 3-wire Power Output Connectors Details: 1 x hardwire Output Voltage: AC 100/110/115/120/173/190/199/200/208/220/230/240 V ± 3% - 50/60 Hz Power Capacity: 13.5 kW / 15000 VA Efficiency: 89.7% Power Factor (PF): 0.99 - Battery
Type: Expandable Run Time (Up To): 15 min at full load ¦ 39 min at half load - Networking
Remote Management Interface: Ethernet 10/100, RS-485 Remote Management Protocol: SNMP, Modbus - Expansion / Connectivity
Interfaces: 1 x management (Fast Ethernet) ¦ 2 x management (RS-485) Expansion Slots: 3 (total) / 2 (free) x Liebert IntelliSlot - Miscellaneous
Features: Casters, LCD display, hot-swappable batteries, FlexPower Technology, double conversion, hot-swappable UPS power module Compliant Standards: CISPR 22 Class A, IEC 61000-4-2, UL 1778, EN 61000-4-2, CSA C22.2 No. 107.1, IEC 62040-2, WEEE, FCC Part 15 A, REACH, EN 62040-2, RoHS2, EN 62040-1:2008, IEC 62040-1:2008, AS 62040-1, AS 62040-2 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 17.3 in Depth: 33.5 in Height: 48.8 in Weight: 919.98 lbs - Dimensions & Weight (Shipping)
Shipping Weight: 959.88 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | VERTIV |
|---|---|
| UNSPSC | 39121011 |
| Part# | GTM-AS4C0NCWGNNXLKB |
| MFG Part# | AS4C0NCWGNNXLKB |
| Device Type | UPS - external |
| UPS Technology | On-line |
| Type | Expandable |
| Efficiency | 89.7% |
| Remote Management Protocol | Modbus, SNMP |
