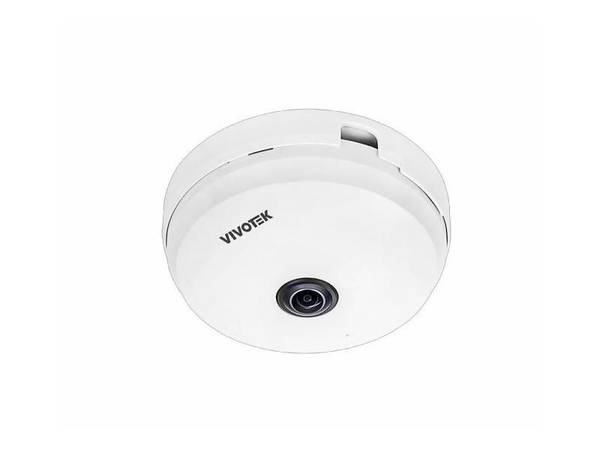

VIVOTEK 5MP, H.265, WDR PRO, SNV, FISHEYE CAMERA 7383825
SKU
7383825
Category: PC & Network Cameras
- Primary Information
Product Description: Vivotek C Series FE9180-H-V2 - network surveillance camera - fisheye Device Type: Network surveillance camera - fixed - fisheye - indoor Audio: Yes: built-in microphone, one-way audio capability Camera Mount Type: Wall mount, ceiling mount Dimensions (WxDxH): 3.7 in x 3.7 in x 1.4 in Weight: 4.94 oz Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 1920 x 1920 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: PS CMOS - 1/2.7" - 5 MP Minimum Illumination: 0.05 lux - color - F2.25 ¦ 0.005 lux - B&W - F2.25 Focal Length Control: Fixed focal Focal Length: 1.16 mm Lens Iris: F/2.25 - fixed iris Interfaces: Ethernet 10Base-T/100Base-TX Voltage: PoE Class 2 Features: Backlight Compensation (BLC), sharpness control, white balance, saturation control, brightness control, contrast control, Privacy Mask Function, Highlight Compensation (HLC), ePTZ, password protection, Wide Dynamic Range (WDR) Pro, Region of Interest (ROI), ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, digest authentication, 180° field of view, 3D digital noise reduction (DNR), Pixel Calculator, bit rate control, Smart Stream III, 4 video streams, signed firmware, ONVIF (Profile T) support, 360° field of view, Local Dewarping, removable IR filter, user access log, 6.3m recognize distance, gamma control, user account management, 31.4m detection distance, 12.5m observe distance, 3.1m identify distance Environmental Parameters (operating): 14 °F - 122 °F; 0 - 90% relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: built-in microphone, one-way audio capability Audio Formats: G.726, G.711 Form Factor: Fisheye Camera Mount Type: Wall mount, ceiling mount Connectivity Technology: Wired Width: 3.7 in Depth: 3.7 in Height: 1.4 in Weight: 4.94 oz - Camera
Type: Color - Day&Night - fixed - indoor Digital Video Format: MJPEG, H.264, H.265 Max Digital Video Resolution: 1920 x 1920 Motion Detection: Yes Digital Zoom: 12 Exposure Range: 1/5 sec - 1/32000 sec Minimum Illumination: 0.05 lux - color - F2.25 ¦ 0.005 lux - B&W - F2.25 Digital Video Capture Resolution: 1920 x 1920 Frame Rate (max): 30 frames per second RAM: 256 MB Flash Memory: 128 MB Features: Backlight Compensation (BLC), sharpness control, white balance, saturation control, brightness control, contrast control, Privacy Mask Function, Highlight Compensation (HLC), ePTZ, password protection, Wide Dynamic Range (WDR) Pro, Region of Interest (ROI), ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, digest authentication, 180° field of view, 3D digital noise reduction (DNR), Pixel Calculator, bit rate control, Smart Stream III, 4 video streams, signed firmware, ONVIF (Profile T) support, 360° field of view, Local Dewarping, removable IR filter, user access log, 6.3m recognize distance, gamma control, user account management, 31.4m detection distance, 12.5m observe distance, 3.1m identify distance - Image Sensor
Type: 5 MP PS CMOS 1/2.7" Total Pixels: 2688 x 1944 - Lens Construction
Type: Fixed focal Focal Length: 1.16 mm Lens Iris: F/2.25 fixed iris Horizontal Field of View (degree): 180 Vertical Field of View (degree): 180 Diagonal Field of View (degree): 180 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, SSL, QOS, CoS, DSCP, IGMPv3, CIFS, UDP - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2 - Miscellaneous
Compliant Standards: BSMI, EN55024, CB, EMC, EN 50121-4, RCM, BIS, EN 55032 Class B, AS/NZS CISPR 32 Class B, IEC/EN 62471, IEEE 802.3af, UL 62368-1, VCCI-CISPR 32:2016 Class B, IEEE 802.1x, NDAA, IEC/EN 62368-1, FCC Part 15 Subpart B Class B, IEC/EN 60950-22 - Power
Power Requirements: PoE Class 2 - Software / System Requirements
Software Included: Trend Micro IoT Security (1 year trial), VIVOCloud OS Required: Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 - Internet of Things (IoT)
Internet of Things (IoT) Compatible: Yes - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 0 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | VIVOTEK |
|---|---|
| UNSPSC | 46171610 |
| Part# | VVO-FE9180-H-V2 |
| MFG Part# | FE9180-H-V2 |
| UPC | 4712123678603 |
| Max Resolution | 1920 x 1920 |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Fisheye |
| Type | Fixed focal |
| Digital Zoom | 12 |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 1920 x 1920 |
| Focal Length | 1.16 mm |
| Encryption Algorithm | TLS 1.2 |
