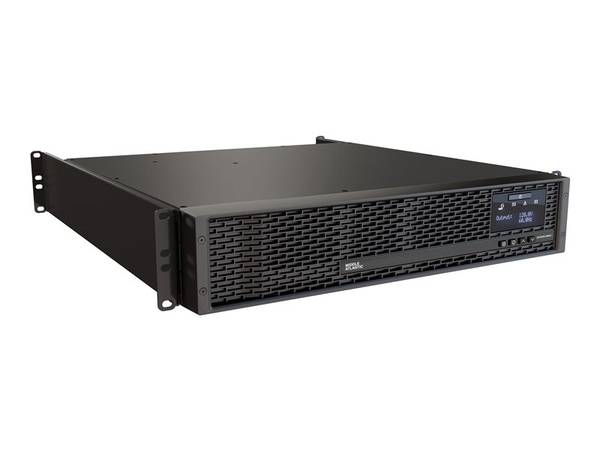

1500VA 120V UPS RLNK OUTLET CONTROL 7266608
SKU
7266608
Category: UPS
- Primary Information
Product Description: Middle Atlantic NEXSYS Backup Power System with RackLink - UPS - individual outlet control, 15A - 1350 Watt - 1500 VA - Sealed Lead Acid (SLA) - 9 Ah Device Type: UPS - rack-mountable Cord Length: 6 ft Rack Size: 19" - 2U Weight: 44.09 lbs Input Voltage: AC 120 V Output Voltage: AC 110/120/127 V Power Capacity: 1350 Watt / 1500 VA Input Connectors: 1 x power IEC C14 Output connectors: 8 x power NEMA 5-20R Battery: Sealed Lead Acid (SLA) - 9 Ah Batteries Qty: 3 Run Time (Up To): 3 min at full load Networking: RS-232, USB, RJ-45 Remote Management Protocol: Telnet, SNMP 3, HTTP, HTTPS, SSH, RADIUS, TCP/IP, TLS Color: Black Dimensions (WxDxH): 19 in x 16 in x 3.5 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 3-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" Cord Length: 6 ft Color: Black - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 80 - 158 V Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC C14 Power Output Connectors Details: 8 x power NEMA 5-20R Output Voltage: AC 110/120/127 V Max Electric Current: 15 A Power Capacity: 1350 Watt / 1500 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 1000 Joules Circuit Protection: Circuit breaker Power Factor (PF): 0.9 - Battery
Quantity: 3 Technology: Sealed Lead Acid (SLA) Voltage Provided: 36 V Capacity: 9 Ah Run Time (Up To): 3 min at full load ¦ 10 min at half load Features: Maintenance free - Networking
Remote Management Interface: RS-232, USB, RJ-45 Remote Management Protocol: Telnet, SNMP 3, HTTP, HTTPS, SSH, RADIUS, TCP/IP, TLS - Expansion / Connectivity
Interfaces: 1 x management (RS-232) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x management - RJ-45 ¦ 2 x dry contact - terminal block ¦ 1 x EPO (emergency power off) - terminal block - Miscellaneous
Cables Included: AC input cable - external - 6 ft Features: Hot-swappable battery, audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function, Metal Oxide Varistor Technology (MOV), fault alarm, low battery alarm, overload alarm, EBM - External Battery Module - Auto Detection Compliant Standards: FCC Class A certified, CSA, UL 1778, RoHS, cTUVus, REACH, CAN/CSA-C22.2, RoHS - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 45 dB - Dimensions & Weight
Width: 19 in Depth: 16 in Height: 3.5 in Weight: 44.09 lbs - Dimensions & Weight (Shipping)
Shipping Weight: 54.01 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121011 |
| Part# | MAA-UPX-RLNK-1500R-8 |
| MFG Part# | UPX-RLNK-1500R-8 |
| UPC | 656747395642 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Color | Black |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, HTTPS, RADIUS, SNMP 3, SSH, TCP/IP, Telnet, TLS |
