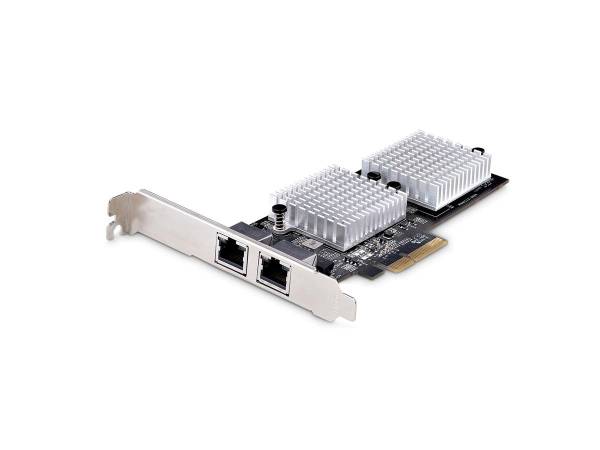

2-PORT 10GBPS PCIE NETWORK ADAPTER CARD 7079873
SKU
7079873
CA$424.99
2-port 10GbE capable PCIe network adapter card leverages existing Cat5e/6/6a cabling - Six Speed NIC 10G/5G/2.5G/1G/100M/10M; Marvell AQC113CS; PCIe 3.0 x4; 16K Jumbo; PXE Boot; AVB; PTP - 10Gb network adapter card is compatible with Windows/Linux
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 2-Port 10Gbps PCIe Network Adapter Card, Network Card for PCs/Servers, Full-Height/Low-Profile PCIe Ethernet Card w/Jumbo Frames, NIC/LAN Interface Card - Marvell AQC113CS Chipset, PXE Boot (ST10GSPEXNDP2) - network adapter - PCIe 3.0 x4 - 10 Gigabit Ethernet x 2 Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 3.0 x4 PCI Specification Revision: PCIe 3.0, PCIe 4.0 Ports: 10 Gigabit Ethernet x 2 Dimensions (WxDxH): 0.8 in x 5.7 in x 2.6 in Weight: 4.09 oz Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T, Ethernet 10GBase-T, NBase-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 5GbE, 10GbE Data Transfer Rate: 10 Gbps Capacity: Jumbo frame size: 16000 Network / Transport Protocol: TCP/IP, UDP/IP Processor: 1 x Marvell AQC113CS Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE P802.3az, IEEE 802.1Q Color: Black System Requirements: Windows 8 / 8.1 / 10 / 11, Linux 3.10.x or later LTS versions only, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 Manufacturer Warranty: 2-year warranty - General
Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 3.0 x4 PCI Specification Revision: PCIe 3.0, PCIe 4.0 - Networking
Ports: 10 Gigabit Ethernet x 2 Connectivity Technology: Wired Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T, Ethernet 10GBase-T, NBase-T Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet Data Transfer Rate: 10 Gbps Capacity: Jumbo frame size: 16000 Network / Transport Protocol: TCP/IP, UDP/IP Status Indicators: Link/activity Features: WOL, EEE, PTP, Auto MDIX, PXE support, full duplex capability, promiscuous mode, VLAN Tagging, PXE boot, secure boot, AVB Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE P802.3az, IEEE 802.1Q - Processor / Memory
Processor: 1 x Marvell AQC113CS - Expansion / Connectivity
Interfaces: 2 x 10M/100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45 - Miscellaneous
Included Accessories: Low-profile bracket, full-height bracket Compliant Standards: FCC, RCM Color: Black - Software / System Requirements
Software Included: Drivers & Utilities OS Required: Windows 8 / 8.1 / 10 / 11, Linux 3.10.x or later LTS versions only, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 - Dimensions & Weight
Width: 0.8 in Depth: 5.7 in Height: 2.6 in Weight: 4.09 oz - Dimensions & Weight (Shipping)
Shipping Width: 5.7 in Shipping Depth: 8.5 in Shipping Height: 1.4 in Shipping Weight: 7.34 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years ¦ Technical support - assistance - lifetime - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 122 °F Humidity Range Operating: 20 - 80% RH - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-ST10GSPEXNDP2 |
| MFG Part# | ST10GSPEXNDP2 |
| UPC | 65030897693 |
| Device Type | Network adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Color | Black |
