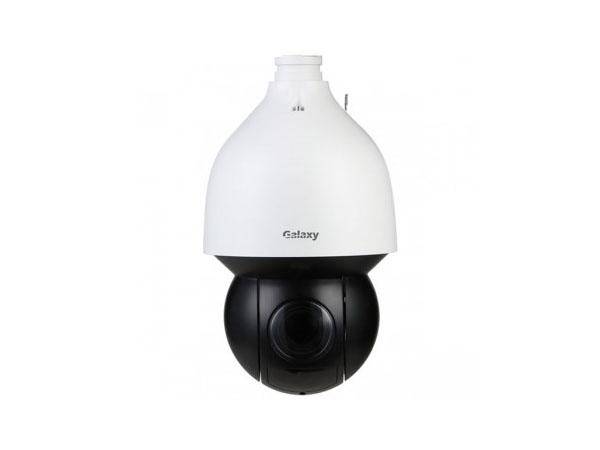

4K/8MP STARLIGHT AUTO-TRACKING 3840X2160 6708212
SKU
6708212
- Primary Information
Product Description: Galaxy Hunter GX-HT-PTZ688X25-AI - network surveillance camera Device Type: Network surveillance camera - pan / tilt / zoom - vandal / weatherproof Audio: Yes Dimensions (WxDxH): 7.5 in x 7.5 in x 13.1 in Weight: 10.36 lbs Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 25 x Max Resolution: 3840 x 2160 Frame Rate (max): 30 frames per second Video Modes: 4K, 1080p, 960p, 720p Optical Sensor Type: Progressive Scan CMOS - 1/1.8" - 8 MP Minimum Illumination: 0.005 lux - color - F1.6 ¦ 0.0005 lux - B&W - F1.6 ¦ 0 lux - IR Focal Length Control: Motorized zoom Focal Length: 5.4 mm - 135 mm Focus Adjustment: Automatic, fixed focus, semi-auto (min distance 3.9 in) Lens Iris: F/1.6-4.0 - auto, fixed and manual iris Panning Range (degree): 0 to 360 Tilting Range (degree): -15 to +90 Interfaces: Ethernet 10Base-T/100Base-T Voltage: DC 24 V / PoE Plus Features: Starlight Technology, perimeter protection, auto tracking, Intelligent Video System (IVS), DORI coverage, 300 preset positions, 5 pattern scans, 8 tours (up to 32 preset per tour), Power-off Memory, Abandoned Object Detection, DH-SD protocol, face detection, fast moving detection, human detection, idle motion, intrusion detection, loitering detection, missing object detection, Parking Detection, PELCO D protocol support, PELCO P protocol support, people gathering, Quick Pick, Smart Motion Detection (SMD), tripwire detection, Vehicle Detection, 3 streams capability, Variable Bitrate (VBR), Constant Bitrate (CBR), auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Highlight Compensation (HLC), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), auto gain control, auto white balance, Defog, Electronic Image Stabilizer (EIS), manual gain control, manual white balance, Region of Interest (ROI), 180° image rotation, privacy masking (up to 24 areas), ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Multicast Streaming, Unicast Streaming, NAS-Ready, Smartphone Monitoring, 802.1x authentication, e-mail alerts, lightning-resistant, surge protection, Voltage Transient Protection Environmental Parameters (operating): -40 °F - 158 °F; 0 - 95% relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes Audio Formats: G.711a, G.711u, PCM, G.726, G.723, G.729, G.722.1, MPEG2 Layer2 Connectivity Technology: Wired Width: 7.5 in Depth: 7.5 in Height: 13.1 in Weight: 10.36 lbs - Camera
Type: Color - Day&Night - pan / tilt / zoom - vandal / weatherproof Digital Video Format: H.265, H.264B, H.264, H.264H, MJPEG, H.265+, H.264+ Max Digital Video Resolution: 3840 x 2160 Video Modes: 4K, 1080p, 960p, 720p Digital Zoom: 16 Exposure Range: 1 sec - 1/30000 sec Minimum Illumination: 0.005 lux - color - F1.6 ¦ 0.0005 lux - B&W - F1.6 ¦ 0 lux - IR Infrared LEDs: 4 Infrared Distance: 492 ft Digital Video Capture Resolution: 3840 x 2160, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1920 x 960, 1280 x 720, 704 x 576, 704 x 480, 352 x 288, 352 x 240, 640 x 480 Frame Rate (max): 30 frames per second RAM: 1 GB Flash Memory: 4 GB Features: Starlight Technology, perimeter protection, auto tracking, Intelligent Video System (IVS), DORI coverage, 300 preset positions, 5 pattern scans, 8 tours (up to 32 preset per tour), Power-off Memory, Abandoned Object Detection, DH-SD protocol, face detection, fast moving detection, human detection, idle motion, intrusion detection, loitering detection, missing object detection, Parking Detection, PELCO D protocol support, PELCO P protocol support, people gathering, Quick Pick, Smart Motion Detection (SMD), tripwire detection, Vehicle Detection, 3 streams capability, Variable Bitrate (VBR), Constant Bitrate (CBR), auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Highlight Compensation (HLC), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), auto gain control, auto white balance, Defog, Electronic Image Stabilizer (EIS), manual gain control, manual white balance, Region of Interest (ROI), 180° image rotation, privacy masking (up to 24 areas), ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Multicast Streaming, Unicast Streaming, NAS-Ready, Smartphone Monitoring, 802.1x authentication, e-mail alerts, lightning-resistant, surge protection, Voltage Transient Protection - Image Sensor
Type: 8 MP Progressive Scan CMOS 1/1.8" - Lens Construction
Type: Motorized zoom Optical Zoom: 25 x Focal Length: 5.4 mm - 135 mm Lens Iris: F/1.6-4.0 auto, fixed and manual iris Focus Adjustment: Automatic, fixed focus, semi-auto Min Focus Distance: 3.9 in Horizontal Field of View (degree): 3.6 - 61.6 Vertical Field of View (degree): 2 - 35.7 Diagonal Field of View (degree): 4 - 66.6 - Panning
Range (degree): 0 to 360 Speed (degree/sec): Up to 400 - Tilting
Range (degree): -15 to +90 Speed (degree/sec): Up to 300 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-T Network Protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, QOS, RTSP, ARP, CGI, SFTP Alarm Inputs Qty: 2 Alarm Outputs Qty: 1 - Expansion / Connectivity
Ports: LAN/power - RJ-45 ¦ Audio line in - bare wire ¦ Audio line out - bare wire Supported Memory Cards: microSD Card - Miscellaneous
Compliant Standards: IP67, IK10, EN 55032, EN55024, EN 50130-4, FCC Part 15 B, ANSI C63.4-2014, UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEEE 802.3at - Power
Power Requirements: DC 24 V / PoE Plus - 2.5 A Power Device: 12 Watt - Dimensions & Weight (Shipping)
Shipping Weight: 17.64 lbs - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 158 °F Relative Humidity (operating): 0 - 95% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 46171610 |
| Part# | SMR-GX-HTPTZ688X25AI |
| MFG Part# | GX-HT-PTZ688X25-AI |
| Max Resolution | 3840 x 2160 |
| Device Type | Network surveillance camera |
| Optical Zoom | 25 x |
| Connectivity Technology | Wired |
| Type | Motorized zoom |
| Digital Zoom | 16 |
| Focus Adjustment | Automatic, fixed focus, semi-auto |
| Digital Video Format | H.264, H.264+, H.264B, H.264H, H.265, H.265+, MJPEG |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 1920 x 960, 2048 x 1536, 2560 x 1440, 352 x 240, 352 x 288, 3840 x 2160, 640 x 480, 704 x 480, 704 x 576 |
| Focal Length | 5.4 mm - 135 mm |
