5 PORT POE GIGABIT SWITCH W/POE PASS 5692563
SKU
5692563
CA$119.17

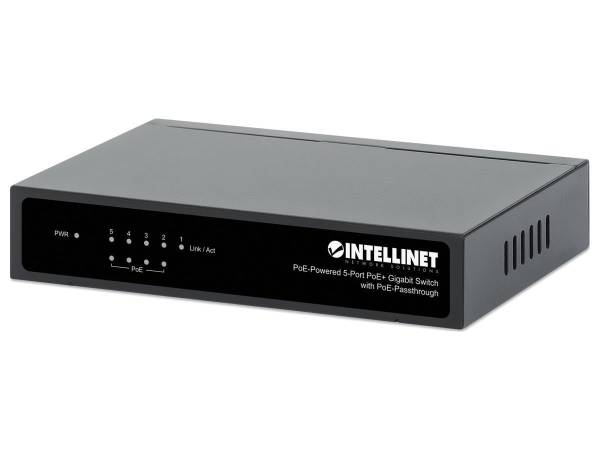

Intellinet Network Solutions PoE-Powered 5-Port Gigabit Switch with PoE Passthrough 4 x PSE PoE ports, 1 x PD PoE port, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), IEEE 802.3az Energy Efficient Ethernet, Desktop (IPS-05G-60WB)
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: IPS-05G-60WB Form Factor: Desktop Connectivity Technology: Wired Data Transfer Rate: 1000 Mbps Networking / Ports Qty: 5 Data Link Protocol: Fast Ethernet Power / Device Type: AC Power Max Power Consumption: 63.75 Watt Power / Voltage Required: 100 - 240 V AC Features: Receives power from a PoE injector or PoE switch and provides power to up to four PoE network devices; Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.); Can be powered via PoE or the included power adapter; Total power budget of 60 watts when using AC power; Total power budget of 26 watts when powered via PD input port; Power output up to 30 watts per port; IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports; Saves installation costs by delivering data and power over existing network cables; Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras); Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection; 10 Gbps switch fabric; Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification; Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on the cable length; 10/100/1000 auto-sensing ports automatically detect optimal network speeds; All RJ45 ports with Auto-MDIX (auto uplink) support; Store and forward switching architecture; IEEE 802.3x flow control for full duplex; Supports up to 2048 MAC address entries; Buffer memory of 1.5 MBits; Compact desktop format with rugged metal housing; Fanless design for silent operation; Mounting holes for wall mounting; Fully NDAA-compliant; Three-year warranty; - Network
Power Over Ethernet (PoE) Support: YES PoE Power Consumption: 60 watts MAC Address Table Size: 2048 entries 10/100/1000BASE-T Ports: 5 Interfaces: RJ45 - Interfaces / Ports
Interfaces: RJ45 10/100/1000BASE-T Ports: 5 - Dimensions&Miscellaneous
What's Included: PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough; Power adapter; Power cable; Instructions; Width: 140 Mm Depth: 78 Mm Height: 28 Mm Weight: 0.27 Kg - Service&Support
Service & Support Type: Three-Year Warranty - Special Feature
Min Operating Temperature: 0 celsius Max Operating Temperature: 40 celsius Min Storage Temperature: 0 celsius Max Storage Temperature: 70 celsius COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | MANHATTAN/INTELLINET |
|---|---|
| UNSPSC | 43222612 |
| Part# | ITR-561082 |
| MFG Part# | 561082 |
| UPC | 766623561082 |
| Network Device Type | Switch |
| 10/100/1000BASE-T Ports | 5 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1000 Mbps |
| Form Factor | Desktop |
| Networking / Ports Qty | 5 |
| Data Link Protocol | Fast Ethernet |
| Power / Device Type | AC Power |
