CATALYST 1200 8-PORT GE, EXT PS, 2X1G COMBO 7974079

SKU
7974079

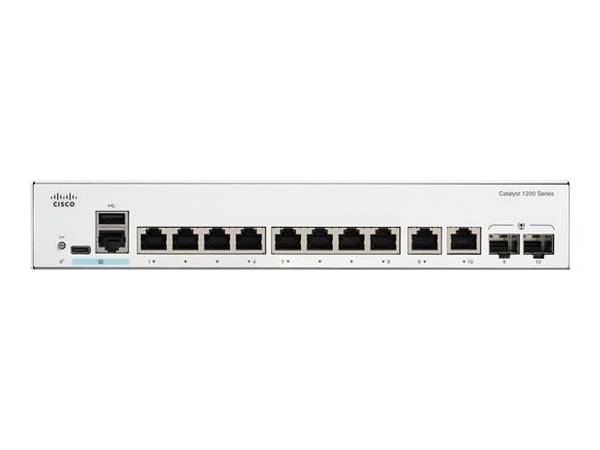

main product photo
CA$265.98
Only 1 left
Switch - C1200-8T-E-2G - 1U - Wired - 1Gbps - Gigabit Ethernet - ARM - 1GB RAM - 512MB Flash Memory - 100 to 240V 50 to 60 Hz - Limited lifetime





buy now pay later
Category: Hubs & Switches
  • Primary Information
    Product Description: Cisco Catalyst 1200-8T-E-2G - switch - gigabit ethernet - 8 ports - smart - rack-mountable
    Device Type: Switch - 8 ports - L3 - smart
    Enclosure Type: Rack-mountable
    Ports: 8 x 10/100/1000 + 2 x combo Gigabit SFP/RJ-45
    Performance: Forwarding rate (64‑byte packets): 14.88 Mpps ¦ Switching capacity: 20 Gbps
    Capacity: MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
    MAC Address Table Size: 8000 entries
    Jumbo Frame Support: 9000 bytes
    Routing Protocol: STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour
    Remote Management Protocol: CLI, Telnet, SSH, SSH-2, DHCP, ICMP, RADIUS, Syslog, HTTP, HTTPS, SNMP, SNMP 2c, SNMP 3, RMON, TFTP, SCP
    Features: Fanless, QoS, ACL support, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing
    Compliant Standards: IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af
    Power: AC 100-240 V (50 - 60 Hz)
    Dimensions (WxDxH): 7.3 in x 10.6 in x 1.7 in
    Weight: 3.06 lbs
    Manufacturer Warranty: Limited lifetime warranty
  • General
    Device Type: Switch - 8 ports - L3 - smart
    Enclosure Type: Desktop, rack-mountable
    Ports: 8 x 10/100/1000 + 2 x combo Gigabit SFP/RJ-45
    Performance: Forwarding rate (64‑byte packets): 14.88 Mpps ¦ Switching capacity: 20 Gbps
    Capacity: MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
    MAC Address Table Size: 8000 entries
    Jumbo Frame Support: 9000 bytes
    Routing Protocol: STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour
    Remote Management Protocol: CLI, Telnet, SSH, SSH-2, DHCP, ICMP, RADIUS, Syslog, HTTP, HTTPS, SNMP, SNMP 2c, SNMP 3, RMON, TFTP, SCP
    Encryption Algorithm: SSL
    Authentication Method: RADIUS
    Features: Fanless, QoS, ACL support, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing
    Compliant Standards: IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af
    Processor: X ARM: 1.4 GHz
    RAM: 1 GB DDR4 SDRAM
    Flash Memory: 512 MB
    Status Indicators: System, link/activity/speed
  • Expansion / Connectivity
    Interfaces: 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 10/100/1000 Base-T RJ-45/SFP ¦ 1 x console RJ-45 ¦ 1 x USB-C management
  • Power
    Power Device: External power adapter
    Voltage Required: AC 100-240 V (50 - 60 Hz)
  • Miscellaneous
    Included Accessories: Pointer card
    MTBF: 2,171,669 hours
    Compliant Standards: Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE
  • Dimensions & Weight
    Width: 7.3 in
    Depth: 10.6 in
    Height: 1.7 in
    Weight: 3.06 lbs
  • Manufacturer Warranty
    Service & Support: Limited warranty - lifetime - response time: next business day ¦ Technical support - return to factory - 1 year
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 122 °F
    Humidity Range Operating: 10 - 90% RH (non-condensing)
    Min Storage Temperature: -13 °F
    Max Storage Temperature: 158 °F
    Humidity Range Storage: 10 - 90% RH (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
More Information
BRANDS CISCO SYSTEMS
UNSPSC 43222612
Part# CSC-C1200-8T-E-2G
MFG Part# C1200-8T-E-2G
UPC 889728521819
Device Type Switch - 8 ports - L3 - smart
Enclosure Type Desktop, rack-mountable
Remote Management Protocol CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Encryption Algorithm SSL
