5-PORT USB PCIE CARD 10GBPS 2A/1C/1XIDC 6776241
SKU
6776241
CA$98.99

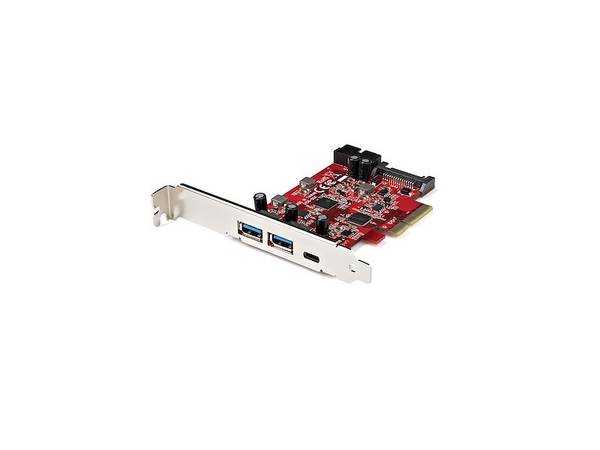

5-Port USB PCIe Card (USB 3.1 Gen 2) - PCI Express expansion card; 10Gbps 2x USB Type-A/1x USB-C Internal IDC header for 2x 5Gbps USB - Multiple INs - For USB devices and SSD/NVMe - Optional SATA power - PCI-e 3.0 x4 slot; Full/low profile brackets
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A, 1x 2 Port IDC (Internal 5Gbps USB Header Expansion), USB C PCIe Card, PCI Express USB Controller - Windows/macOS/Linux (PEXUSB312A1C1H) - USB adapter - PCIe 3.0 x4 - USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1 Device Type: USB adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express 3.0 x4 Ports: USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1 Dimensions (WxDxH): 2.7 in x 4 in x 0.6 in Weight: 2.12 oz Data Link Protocol: USB 3.2 Gen 2, USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1 Data Transfer Rate: 10 Gbps Processor: ASMedia ASM1142 Compliant Standards: USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1, USB 3.2 Gen 2 Color: Red System Requirements: Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.5 or later, Linux LTS versions only, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0 Manufacturer Warranty: 2-year warranty - General
Device Type: USB adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express 3.0 x4 - Networking
Ports: USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1 Connectivity Technology: Wired Data Link Protocol: USB 3.2 Gen 2, USB 2.0, SuperSpeed USB 3.0, USB 3.1, USB 3.2 Gen 1 Data Transfer Rate: 10 Gbps Features: UASP Compliant Standards: USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Processor / Memory
Processor: ASMedia ASM1142 - Expansion / Connectivity
Interfaces: 2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x SATA power - 15 pin Serial ATA power (internal) ¦ 1 x USB 3.0 - 20 pin IDC (internal) - Miscellaneous
Included Accessories: Low-profile bracket MTBF: 1,677,495 hours Compliant Standards: UASP (USB Attached SCSI Protocol), RoHS, WEEE, FCC Color: Red - Software / System Requirements
OS Required: Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.5 or later, Linux LTS versions only, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0 - Dimensions & Weight
Width: 2.7 in Depth: 4 in Height: 0.6 in Weight: 2.12 oz - Dimensions & Weight (Shipping)
Shipping Width: 5.6 in Shipping Depth: 6.7 in Shipping Height: 1.2 in Shipping Weight: 4.41 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 158 °F Humidity Range Operating: 15 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-PEXUSB312A1C1H |
| MFG Part# | PEXUSB312A1C1H |
| UPC | 65030888325 |
| Device Type | USB adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Form Factor | Plug-in card |
| Data Link Protocol | SuperSpeed USB 3.0, USB 2.0, USB 3.1, USB 3.2 Gen 1, USB 3.2 Gen 2 |
| Color | Red |
