8-PORT EXTERNAL 12GB SAS/ 11841332
SKU
11841332
Category: Network Adapters
- Primary Information

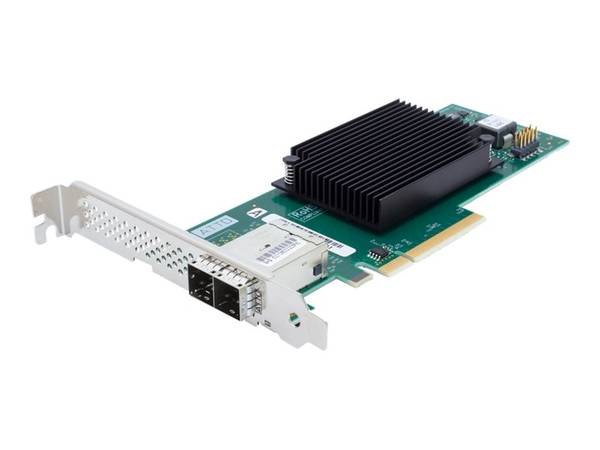

Product Description: ATTO ExpressSAS H1280GT - storage controller - SATA / SAS 12Gb/s - PCIe 4.0 x8 Device Type: Storage controller - plug-in card - low profile Bus Type: PCIe 4.0 x8 Interface: SATA / SAS 12Gb/s Data Transfer Rate: 12 Gbit/s Channel Qty: 8 RAID Level: RAID 0, RAID 1, RAID 10, RAID 1E System Requirements: Apple MacOS, Linux, FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Microsoft Windows, Red Hat Enterprise Linux, CentOS, VMware ESXi, Linux Fedora, illumos Dimensions (WxDxH): 6.6 in x 2.7 in Manufacturer Warranty: 3-year warranty - General
Device Type: Storage controller - plug-in card - low profile Host Bus: PCIe 4.0 x8 - Storage Controller
Interface: SATA / SAS 12Gb/s Data Transfer Rate: 12 Gbit/s Channel Qty: 8 RAID Level: RAID 0, RAID 1, RAID 10, RAID 1E - Expansion / Connectivity
Interfaces: 2 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Shielded Mini MultiLane (external) - Miscellaneous
Features: LED indicator, Advanced Data Streaming (ADS), temperature monitoring, UEFI support MTBF: 4,500,000 hours Compliant Standards: ICES-003, EMC, RoHS, RoHS 2011/65/EU, IEC 62368-1, EN 55032:2015, CISPR 32:2015 Class A, AS/NZS CISPR 32:2015, EN 55035:2017, RoHS 2015/863/EU, FCC Part 15 Subpart B:2020 Class A, VCCI 32-1 - Power
Power Consumption Operational: 6.3 Watt - Software / System Requirements
Software Included: ATTO ConfigTool OS Required: Apple MacOS, Linux, FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Microsoft Windows, Red Hat Enterprise Linux, CentOS, VMware ESXi, Linux Fedora, illumos - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Dimensions & Weight
Depth: 6.6 in Height: 2.7 in - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | ATTO TECHNOLOGY |
|---|---|
| UNSPSC | 43201404 |
| Part# | AOT-ESAH-1280-GT0 |
| MFG Part# | ESAH-1280-GT0 |
| UPC | 603175009436 |
| Device Type | Storage controller - plug-in card - low profile |
| Data Transfer Rate | 12 Gbit/s |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 1E |
