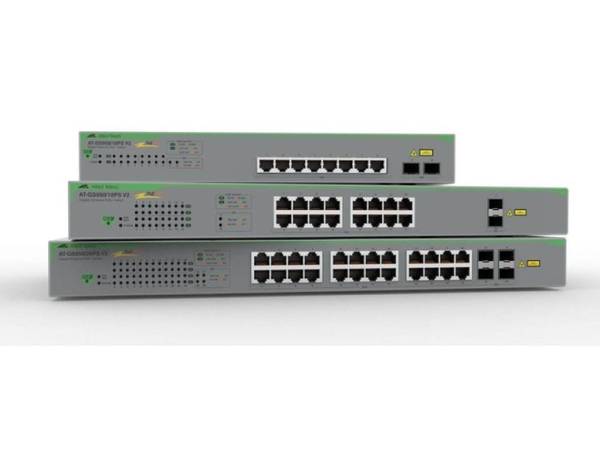

ALLIED TELESIS 8 PORT 1GB WEBSMART SWITCH 2SFP PORTS V2 6833887
SKU
6833887
CA$766.29
GIGABIT WEBSMART SWITCH, 8X 10/100/1000-T POE+, 2X SFP PORTS AND SINGLE FIXED PSU, US POWER CODE
Category: Hubs & Switches
- Primary Information
Product Description: Allied Telesis AT GS950/10PS V2 - switch - 8 ports - smart - rack-mountable Device Type: Switch - 8 ports - smart Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 (PoE+) + 2 x 1000Base-X Power Over Ethernet (PoE): PoE+ PoE Budget: 75 W Performance: Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Forwarding rate (10Mbps): 14880 packets per second ¦ Forwarding rate (100Mbps): 148800 packets per second ¦ Forwarding rate (1000Mbps): 1488000 packets per second Capacity: VLAN IDs: 4000 ¦ Virtual interfaces (VLANs): 256 ¦ Packet buffer size: 1.5 MB MAC Address Table Size: 16K entries Jumbo Frame Support: 10KB Routing Protocol: IGMPv2, IGMP, MSTP, RSTP, STP Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI, ICMP, DHCP, RSTP, RADIUS Features: IGMP snooping, Syslog support, port mirroring, SNTP support, fanless, LACP support, LLDP support, DHCP client, NDP, 802.1x authentication, FTP client, MIB II, EEE, HOL Blocking Prevention Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az Dimensions (WxDxH): 13 in x 7.1 in x 1.7 in Weight: 4.19 lbs Localization: United States - General
Device Type: Switch - 8 ports - smart Enclosure Type: Desktop, rack-mountable, wall-mountable Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 (PoE+) + 2 x 1000Base-X Power Over Ethernet (PoE): PoE+ PoE Budget: 75 W Performance: Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Forwarding rate (10Mbps): 14880 packets per second ¦ Forwarding rate (100Mbps): 148800 packets per second ¦ Forwarding rate (1000Mbps): 1488000 packets per second Capacity: VLAN IDs: 4000 ¦ Virtual interfaces (VLANs): 256 ¦ Packet buffer size: 1.5 MB MAC Address Table Size: 16K entries Jumbo Frame Support: 10KB Routing Protocol: IGMPv2, IGMP, MSTP, RSTP, STP Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI, ICMP, DHCP, RSTP, RADIUS Encryption Algorithm: MD5 Authentication Method: Secure Shell (SSH), RADIUS, TACACS Features: IGMP snooping, Syslog support, port mirroring, SNTP support, fanless, LACP support, LLDP support, DHCP client, NDP, 802.1x authentication, FTP client, MIB II, EEE, HOL Blocking Prevention Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az RAM: 256 MB Flash Memory: 32 MB Status Indicators: Status - Expansion / Connectivity
Interfaces: 8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP - Power
Power Device: Internal power supply Power Consumption Operational: 100 Watt - Miscellaneous
Included Accessories: Rubber feet Rack Mounting Kit: Included Compliant Standards: CSA, C-Tick, CISPR 22 Class A, cUL, EN55022, EN55024, FCC, RoHS, VCCI Class A, China RoHS, EU RoHS, EN 62368, UL 62368 Localization: United States - Dimensions & Weight
Width: 13 in Depth: 7.1 in Height: 1.7 in Weight: 4.19 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 90% (non-condensing) Min Storage Temperature: -13 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | ALLIED TELESIS |
|---|---|
| UNSPSC | 43222612 |
| Part# | AT-GS950/10PS V2-10 |
| MFG Part# | GS950/10PSV2-10 |
| UPC | 767035219127 |
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop, rack-mountable, wall-mountable |
| Remote Management Protocol | CLI, DHCP, HTTP, ICMP, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Encryption Algorithm | MD5 |
