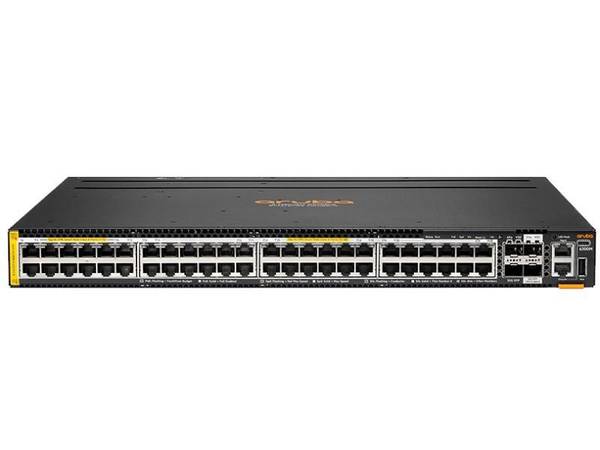

ARUBA 6300M 48SR5 CL8/CL6 2P50G 2P10G SW 7079597
SKU
7079597
CA$28,729.00
Switch - HPE Aruba Networking CX 6300 Switch Series - 1U - Wired - 1Gbps - Networking / Ports Qty: 56 - Gigabit Ethernet - ARM Cortex A72 - 8GB RAM - 32GB Flash Memory - JL670A PSU: 110V-120V/208V-240V JL086A PSU: 100V-240V JL087A PSU: 110V-240V
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: HPE Aruba Networking CX 6300 Switch Series Form Factor: 1U Connectivity Technology: Wired Data Transfer Rate: 1 Gbps Networking / Ports Qty: 56 Data Link Protocol: Gigabit Ethernet Processor / Type: ARM Cortex A72 RAM / Total Installed Size: 8 GB Flash Memory / Installed Size: 32 GB Power / Device Type: Power Supply Power / Installed Qty: 2 Power Consumption Operational: 39 Watt Max Power Consumption: 86 Watt Power / Voltage Required: JL670A PSU: 110V-120V/208V-240V JL086A PSU: 100V-240V JL087A PSU: 110V-240V Features: The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures. - Network
Power Over Ethernet (PoE) Support: yes PoE Power Consumption: Max PoE Power: 2880W Remote Management Protocol: SNMP Routing Protocol: Layer 3 Advanced SFP Ports: 4 Interfaces: 48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port (on port 1-12), and up to 60W per port (on ports 13-48) 2x 10G/25G/50G SFP ports 2x 1/10G SFP ports (LRM + MACSEC) Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W) 1x USB-C Console Port 1x RJ Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App - Interfaces / Ports
Interfaces: 48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port (on port 1-12), and up to 60W per port (on ports 13-48) 2x 10G/25G/50G SFP ports 2x 1/10G SFP ports (LRM + MACSEC) Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W) 1x USB-C Console Port 1x RJ Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App SFP Ports: 4 - Dimensions&Miscellaneous
Width: 1.73 Inch Depth: 17.4 Inch Height: 15.2 Inch Weight: 14.8 lbs. - Service&Support
Service & Support Type: Limited Lifetime Warranty - Special Feature
Min Operating Temperature: 0C Max Operating Temperature: 45 Min Storage Temperature: -40C Max Storage Temperature: 70C COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-R8S91A |
| MFG Part# | R8S91A |
| UPC | 190017538686 |
| Flash Memory / Installed Size | 32 GB |
| Network Device Type | Switch |
| RAM / Total Installed Size | 8 GB |
| Power / Installed Qty | 2 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | 1U |
| Processor / Type | ARM Cortex A72 |
| Networking / Ports Qty | 56 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | SNMP |
