INDUSTRIAL 6PORT GIGABIT ETHERNET SWITCH 6666542
SKU
6666542
CA$361.99

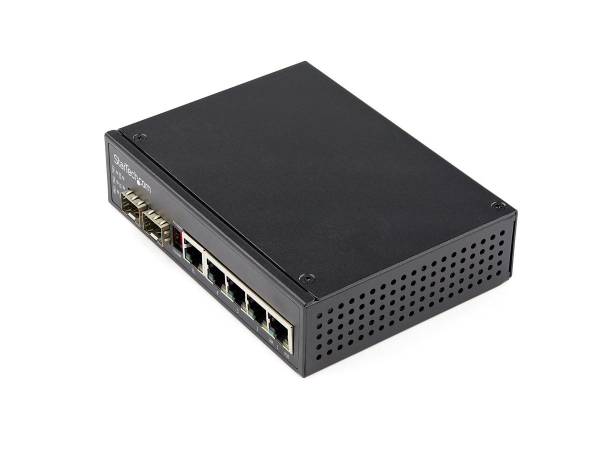

Industrial 6 Port Gigabit Ethernet Switch - Up to 30W per 4 PoE ports - 75C to -40C hardened 5 RJ-45 ports (4 PoE) + 2 SFP slots MSA IP-30 housing MTBF 500k + hrs Vibration/shock/free fall rated Unmanaged DIN mountable/DIN connector included 2yr warr
Category: Hubs & Switches
- Primary Information
Product Description: StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C, DIN Connector/Mountable, Fast Ethernet - High Power PoE Switch (IES1G52UPDIN) - switch - 6 ports Device Type: Switch - 6 ports Subtype: Gigabit Ethernet Ports: 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP Power Over Ethernet (PoE): PoE+ PoE Budget: 120 W Performance: Switching fabric speed: 12 Gbps Jumbo Frame Support: 9KB Features: Flow control, full duplex mode, 1MB packet buffer, 2KV ESD Protector, MDI-X Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at Power: DC 48 - 56 V Dimensions (WxDxH): 4.1 in x 5.6 in x 1.4 in Weight: 17.35 oz Color: Black Manufacturer Warranty: 2-year warranty - General
Device Type: Switch - 6 ports Enclosure Type: DIN rail mountable Subtype: Gigabit Ethernet Ports: 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP Power Over Ethernet (PoE): PoE+ PoE Budget: 120 W Performance: Switching fabric speed: 12 Gbps Jumbo Frame Support: 9KB Features: Flow control, full duplex mode, 1MB packet buffer, 2KV ESD Protector, MDI-X Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at Status Indicators: Power, PoE, SFP, link - Expansion / Connectivity
Interfaces: 1 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x SFP ¦ 1 x terminal block - Power
Voltage Required: DC 48 - 56 V Power Consumption Operational: 126 Watt - Miscellaneous
Color: Black Included Accessories: Terminal block connector, mounting kit MTBF: 525,058 hours Compliant Standards: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, UL 60950-1, EN 60950-1, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 - Dimensions & Weight
Width: 4.1 in Depth: 5.6 in Height: 1.4 in Weight: 17.35 oz - Dimensions & Weight (Shipping)
Shipping Width: 8.3 in Shipping Depth: 6.4 in Shipping Height: 2.5 in Shipping Weight: 24.69 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 176 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43222612 |
| Part# | STC-IES1G52UPDIN |
| MFG Part# | IES1G52UPDIN |
| UPC | 65030889582 |
| Device Type | Switch - 6 ports |
| Color | Black |
| Enclosure Type | DIN rail mountable |
