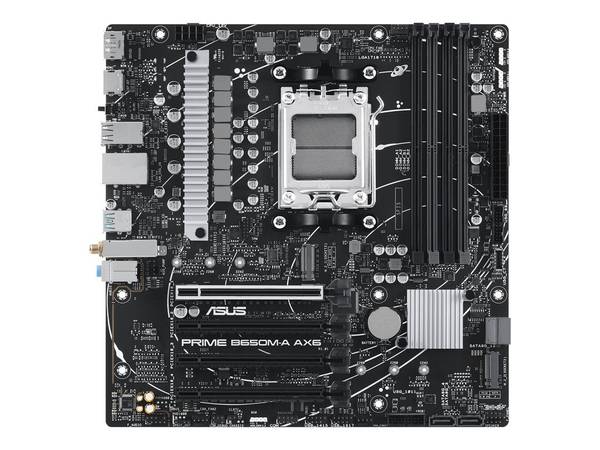

ASUS PRIME B650M-A AX6- GSI 8191262
SKU
8191262
Category: Motherboards
- Primary Information
Product Description: ASUS PRIME B650M-A AX6- GSI - motherboard - micro ATX - Socket AM5 - AMD B650 Product Type: Motherboard - micro ATX Chipset Type: AMD B650 Processor Socket: 1 x Socket AM5 Compatible Processors: Ryzen (supports Ryzen 7000 Series) Max RAM Size: 192 GB RAM Supported: 4 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered Storage Ports: 4 x SATA-600 (RAID), 3 x M.2 USB / FireWire Ports: 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) Audio: HD Audio (8-channel) LAN: Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 - General
Product Type: Motherboard - micro ATX Chipset Type: AMD B650 Processor Socket: Socket AM5 Max Processors Qty: 1 Compatible Processors: Ryzen (supports Ryzen 7000 Series) - Supported RAM
Max Size: 192 GB Technology: DDR5 Bus Clock: 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2700 MHz, 2600 MHz, 2500 MHz, 2400 MHz Supported RAM Integrity Check: Non-ECC, on-die ECC, ECC Registered or Buffered: Unbuffered Features: Dual channel memory architecture, AMD EXPO technology - Audio
Type: HD Audio (8-channel) Compliant Standards: High Definition Audio - LAN
Network Interfaces: Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 - Expansion / Connectivity
Expansion Slots: 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 3 x PCIe 4.0 x16 (x1 mode) ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) Storage Interfaces: SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA RAID Features: AMD RAID Xpert2 Technology Interfaces: 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x USB-C 3.2 Gen 2 Internal Interfaces: 1 x USB-C 3.2 Gen 1 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header ¦ 1 x SPI - header Power Connectors: 24-pin main power connector, 8-pin ATX12V connector - Features
BIOS Type: AMI BIOS Features: UEFI BIOS, ASUS EZ Flash 3 Sleep / Wake Up: Wake on LAN (WOL), wake on PME Hardware Features: ASUS OptiMem II, audio jack detect technology, jack retasking, BIOS FlashBack button, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, ASUS EZ DIY, VRM heatsink design, BIOS FlashBack LED, ASUS Aura Sync, CrashFree BIOS 3, DIY Friendly Design - Miscellaneous
Included Accessories: ASUS Wi-Fi moving antenna, IO shield, 2 x M.2 screw package Cables Included: 2 x Serial ATA cable Software Included: Armoury Crate, ASUS AI Suite III, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) Compliant Standards: CEC Tier II Width: 9.6 in Depth: 9.6 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43201513 |
| Part# | ASU-PRIME B650M-A AX6- GSI |
| MFG Part# | PRIME B650M-A AX6- GSI |
| UPC | 197105607279 |
| Product Type | Motherboard - micro ATX |
| Type | HD Audio (8-channel) |
