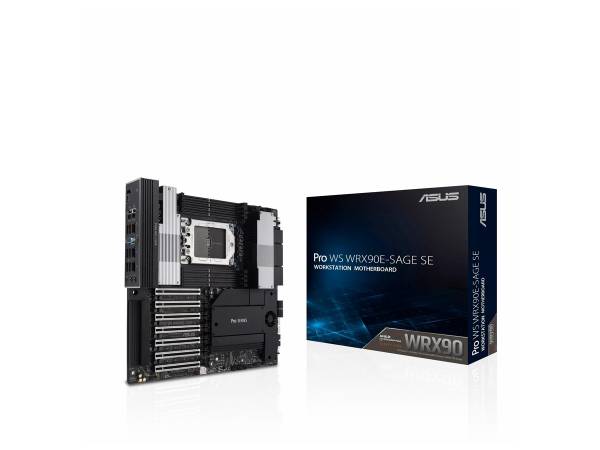

ASUS PRO WS WRX90E-SAGE SE EEB WORKSTATION MOTHERBOARD, AMD RYZEN 7437804
SKU
7437804
CA$1,840.37
ASUS Pro WS WRX90E-SAGE SE EEB Workstation motherboard, AMD Ryzen Threadripper PRO 7000 WX-Series Processors, ECC R-DIMM DDR5, 32 power-stage,7xPCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support, CPU and memory overclocking ready, 3 Years
Category: Motherboards
- Dimensions&Miscellaneous
Model: Pro WS WRX90E-SAGE SE Width: 12 Inch Depth: 13 Inch - Primary Information
Mainboard Form Factor: EEB Mainboard / Chipset Type: AMD WRX90 Compatible Processors: AMD Socket sTR5 WRX90 for Ryzen Threadripper PRO 7000 WX-Series Processors Audio Output: Realtek ALC1220P Networking Type: 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600); 1 x Intel dual 10Gb Ethernet; ASUS LANGuard - Processor
Processor / Socket Type: sTR5 - Memory
RAM / Technology: DDR5 Data Integrity Check: ECC - Video
Video Interface: VGA - Expansion
Expansion Slots Total (Free): AMD Ryzen Threadripper PRO 7000 WX-Series Processors, 6 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot (x8 mode). Interfaces & Connections: Back Panel I/O Ports 2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button. Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 5 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power Related 1 x 24-pin main power connector 2 x 8-pin +12V power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe power connectors Storage Related 4 x M.2 slots (Key M) 2 x SlimSAS connectors 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector supports USB Type-C 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header - Service&Support
Service & Support Type: 3 Year Warranty - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43201513 |
| Part# | ASU-PRO WS WRX90E-SAGE SE |
| MFG Part# | PRO WS WRX90E-SAGE SE |
| UPC | 197105441149 |
| Mainboard / Chipset Type | AMD WRX90 |
| RAM / Technology | DDR5 |
| Processor / Socket Type | sTR5 |
| Video Interface | VGA |
| Audio Output | Realtek ALC1220P |
| Data Integrity Check | ECC |
| Mainboard Form Factor | EEB |
