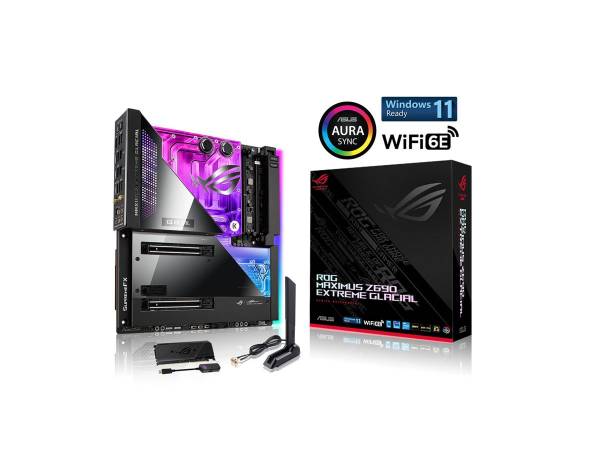

ASUS ROG MAXIMUS Z690 EXTREME GLACIAL MTHRBD 6833518
SKU
6833518
CA$2,865.35
ASUS ROG Maximus Z690 Extreme Glacial (WiFi 6E) LGA 1700(Intel 12th&13th Gen) EATX gaming motherboard (Integrated EK Ultrablock,PCIe 5.0,DDR5,24+1 105A power stages,5x M.2,1xPCIe 5.0 M.2,10Gb&2.5Gb LAN,2xThunderbolt 4 onboard, AniMe Matrix LED, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support)
Category: Motherboards
- Dimensions&Miscellaneous
Model: ROG MAXIMUS Z690 EXTREME GLACIAL Width: 12 Inch Depth: 10.9 Inch - Primary Information
Mainboard Form Factor: EATX Mainboard / Chipset Type: Intel Z690 Compatible Processors: 12th Gen Intel Core, Pentium Gold and Celeron Processors Audio Output: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Networking Type: 1 x Intel 2.5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet ASUS LANGuard Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. Multi GPU Supported: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** - Processor
Processor / Socket Type: Socket LGA1700 - Memory
RAM / Technology: DDR5 Data Integrity Check: Non-ECC RAM / Max Supported Size: 128 GB - Expansion
Interfaces & Connections: Rear USB (Total 10 ports) 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C) Front USB (Total 10 ports) 1 x Thunderbolt 4 connector (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports - Service&Support
Service & Support Type: 3 Years Warranty - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43201513 |
| Part# | ASU-ROG MAXIMUS Z690 EXTREME GLACIAL |
| MFG Part# | ROG MAXIMUS Z690 EXTREME GLACIAL |
| UPC | 195553463409 |
| Mainboard / Chipset Type | Intel Z690 |
| RAM / Technology | DDR5 |
| Processor / Socket Type | Socket LGA1700 |
| Audio Output | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Data Integrity Check | Non-ECC |
| Mainboard Form Factor | EATX |
