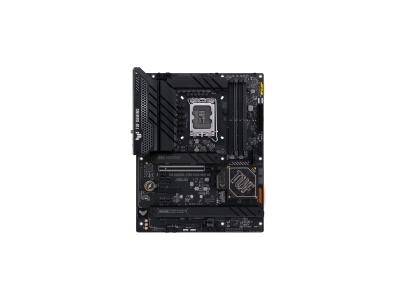

ASUSTUF GAMING Z790-PLUS WIFI INTEL SOCKET LGA1700 FOR 12TH & 13TH GEN 4DDR5 128GB ATX 7104925
SKU
7104925
CA$363.52
Only 5 left
TUF GAMING Z790-PLUS WIFI 6E IS DESIGNED WITH MILITARY-GRADE COMPONENTS AND GAME-READY FEATURES TO PROVIDE UNWAVERING GAMING STABILITY WITH THE LATEST 13TH GEN INTEL CORE PROCESSORS
Category: Motherboards
- Dimensions&Miscellaneous
Model: TUF GAMING Z790-PLUS WIFI Width: 12 Inch Depth: 9.6 Inch - Primary Information
Mainboard Form Factor: ATX Mainboard / Chipset Type: Intel Z790 Compatible Processors: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Audio Output: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* Networking Type: 1 x Intel 2.5Gb Ethernet; TUF LANGuard Features: ASUS TUF PROTECTION: DIGI+ VRM (Digital power design with DrMOS); ESD Guards; TUF LANGuard; Overvoltage Protection; Safeslot; Stainless-Steel Back I/O; ASUS Q-Design: M.2 Q-Latch; PCIe Slot Q-Release; Q-DIMM; Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); Q-Slot; ASUS Thermal Solution: M.2 heatsink; VRM heatsink design; ASUS EZ DIY: CPU Socket lever protector; ProCool; Pre-mounted I/O shield; SafeDIMM; AURA Sync: Aura RGB header; Addressable Gen 2 headers - Processor
Processor / Socket Type: FCLGA1700 - Memory
RAM / Technology: DDR4 Data Integrity Check: Non-ECC RAM / Max Supported Size: 128 GB - Storage
Controller Interface Type: SATA 6 Gb/s; M.2 - Expansion
Expansion Slots Total (Free): Intel 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x4 slot; 2 x PCIe 3.0 x1 slots Interfaces & Connections: DisplayPort; HDMI; USB 3.2 Gen 2x2 port (1 x USB Type-C); USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C); USB 3.2 Gen 1 ports (4 x Type-A); Audio jacks - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43201513 |
| Part# | ASU-TUF GAMING Z790-PLUS WIFI |
| MFG Part# | TUF GAMING Z790-PLUS WIFI |
| UPC | 197105014503 |
| Mainboard / Chipset Type | Intel Z790 |
| RAM / Technology | DDR4 |
| Processor / Socket Type | FCLGA1700 |
| Audio Output | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| Data Integrity Check | Non-ECC |
| Mainboard Form Factor | ATX |
