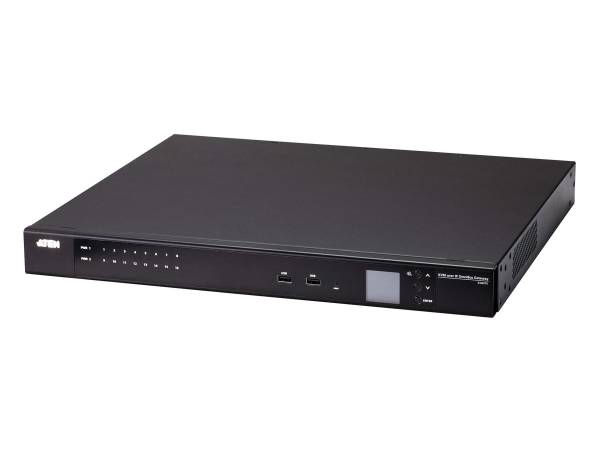

ATEN 16-PORT KVM OVER IP OMNIBUS GATEWAY 7442496
SKU
7442496
Category: Network Devices
- Primary Information
Product Description: ATEN OmniBus - KVM switch - gateway, over IP - 16 ports - rack-mountable Device Type: KVM switch - 16 ports Enclosure Type: Rack-mountable 1U Subtype: KVM Ports: 16 x KVM port(s) Remote Management Protocol: SMTP, IPv4, IPv6 Features: Panel Array Mode Live+, OpenSSL VPN, reset button, metal housing, Smart Out-of-Band, 1 fan, SNMP trap, e-mail notification, SMS alert, firmware upgradable, SharePort Technology, IP address filtering, MAC address filtering, CSR generation Power: AC 100-240 V (50 - 60 Hz) 2.5 A Power Redundancy: Yes Dimensions (WxDxH): 14.9 in x 17.1 in x 1.7 in Weight: 14.18 lbs System Requirements: Microsoft Windows, Apple MacOS, Linux Manufacturer Warranty: 3-year warranty - General
Device Type: KVM switch - 16 ports Enclosure Type: Desktop, rack-mountable 1U Subtype: KVM Ports: 16 x KVM port(s) Keyboard / Mouse Interface: USB Remote Management Protocol: SMTP, IPv4, IPv6 Encryption Algorithm: TLS 1.3, FIPS 140-2, 2048-bit RSA, 256-bit AES, 3DES-168, DES-56, RC4 Authentication Method: RADIUS, LDAPS, LDAP, Active Directory Max Resolution: 1920 x 1200 @ 60 Hz Features: Panel Array Mode Live+, OpenSSL VPN, reset button, metal housing, Smart Out-of-Band, 1 fan, SNMP trap, e-mail notification, SMS alert, firmware upgradable, SharePort Technology, IP address filtering, MAC address filtering, CSR generation Built-in Devices: 1.6-inch LCD Status Indicators: Power, KVM - Expansion / Connectivity
Interfaces: 2 x USB Type A ¦ 16 x KVM RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 2 x serial RJ-45 ¦ 2 x relay 3 pin terminal block - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Voltage Required: AC 100-240 V (50 - 60 Hz) Electric Current Required: 2.5 A - Software / System Requirements
OS Required: Microsoft Windows, Apple MacOS, Linux - Dimensions & Weight
Width: 14.9 in Depth: 17.1 in Height: 1.7 in Weight: 14.18 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 80% (non-condensing) Min Storage Temperature: -4 °F Max Storage Temperature: 140 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222605
| BRANDS | ATEN TECHNOLOGY |
|---|---|
| UNSPSC | 43222605 |
| Part# | ATE-KG0016 |
| MFG Part# | KG0016 |
| UPC | 672792015076 |
| Max Resolution | 1920 x 1200 @ 60 Hz |
| Device Type | KVM switch - 16 ports |
| Enclosure Type | Desktop, rack-mountable 1U |
| Remote Management Protocol | IPv4, IPv6, SMTP |
| Encryption Algorithm | 2048-bit RSA, 256-bit AES, 3DES-168, DES-56, FIPS 140-2, RC4, TLS 1.3 |
