AXIS P3737-PLE 7369650
SKU
7369650
Category: PC & Network Cameras
- Primary Information

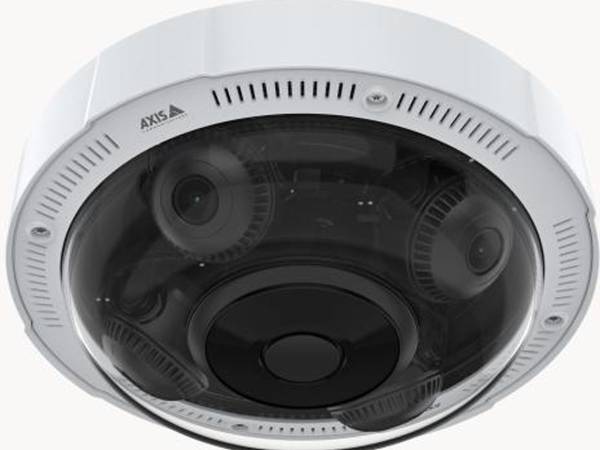

Product Description: AXIS P37 Series P3737-PLE - network panoramic camera - dome - TAA Compliant Device Type: Network panoramic camera - multi-sensor - dome - outdoor - tamper-resistant / weatherproof Audio: Yes: two-way audio via optional audio and I/O interface, speaker pairing Dimensions (WxDxH): 10 in x 10 in x 3.6 in Weight: 4.41 lbs Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 2.5 x Max Resolution: 2592 x 1944 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: PS RGB CMOS - 4 x 1/2.7" - 4 x 5 MP Minimum Illumination: 0.19 lux - color - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR Focal Length Control: Vari-focal Focal Length: 3.2 mm - 8.1 mm Focus Adjustment: (min distance 1.6 ft) Lens Iris: F/1.9-3.2 - fixed iris Panning Range (degree): -90 to +90 Tilting Range (degree): 25 to 95 Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Voltage: PoE Plus Class 4 Features: IR Corrected lens, remote zoom, remote focus, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, day/night threshold, tone mapping, barrel distortion correction, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, Lightfinder technology, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, scene metadata, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, IP address filtering TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -22 °F - 122 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network panoramic camera Audio Support: Yes: two-way audio via optional audio and I/O interface, speaker pairing Form Factor: Dome Connectivity Technology: Wired Width: 10 in Depth: 10 in Height: 3.6 in Weight: 4.41 lbs Localization: Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States - Camera
Type: Color - Day&Night - multi-sensor - outdoor - tamper-resistant / weatherproof Digital Video Format: H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC Max Digital Video Resolution: 2592 x 1944 Motion Detection: Yes Exposure Range: 1/5 sec - 1/50000 sec Minimum Illumination: 0.19 lux - color - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 49 ft Video Capture: 2592 x 1944 @ 20 fps ¦ 2560 x 1440 @ 25/30 fps RAM: 4 GB Flash Memory: 8 GB Features: IR Corrected lens, remote zoom, remote focus, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, day/night threshold, tone mapping, barrel distortion correction, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, Lightfinder technology, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, scene metadata, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, IP address filtering - Image Sensor
Type: 4 x 5 MP PS RGB CMOS 4 x 1/2.7" - Lens Construction
Type: Vari-focal Optical Zoom: 2.5 x Focal Length: 3.2 mm - 8.1 mm Lens Iris: F/1.9-3.2 fixed iris Min Focus Distance: 1.6 ft Horizontal Field of View (degree): 37 - 99 Vertical Field of View (degree): 28 - 70 Diagonal Field of View (degree): 47 - 134 - Panning
Range (degree): -90 to +90 - Tilting
Range (degree): 25 to 95 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf - Expansion / Connectivity
Ports: LAN - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2, TLS 1.3 - Miscellaneous
Included Accessories: Connector guard, cable gaskets TAA Compliant: Yes Compliant Standards: IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907 Color: White, NCS S 1002-B - Power
Power Requirements: PoE Plus Class 4 Power Device: 13.25 Watt - Software / System Requirements
Software Included: AXIS Object Analytics, AXIS Video Motion Detection - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02634-001 |
| MFG Part# | 02634-001 |
| UPC | 7331021080638 |
| Max Resolution | 2592 x 1944 |
| Device Type | Network panoramic camera |
| Optical Zoom | 2.5 x |
| Connectivity Technology | Wired |
| Form Factor | Dome |
| Type | Vari-focal |
| Color | NCS S 1002-B, White |
| Focus Adjustment | (min distance 1.6 ft) |
| Digital Video Format | AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Focal Length | 3.2 mm - 8.1 mm |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
