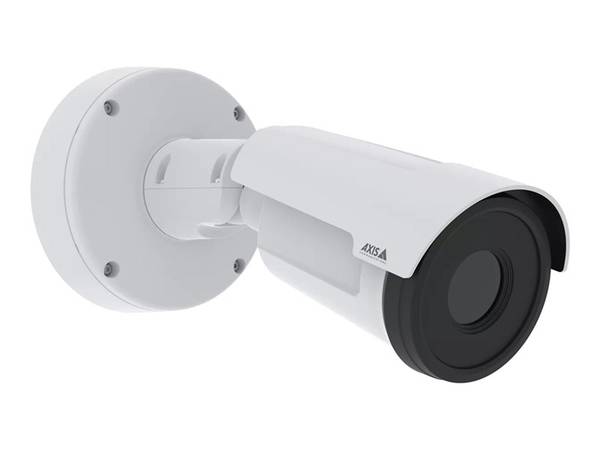

AXIS Q1971-E 13 MM 30 FPS 8187310
SKU
8187310
CA$4,245.32
Outdoor thermal network camera for wall and ceiling mount. The camera is based on ARTPEC 8 and it supports Electronic Image Stabilization, Zipstream, ONVIF, H.264, H.265, audio in, two supervised I/O ports and local storage. It includes Video motion detection, audio detection, shock detection and support for AXIS Camera Application Platform enabling installation of AXIS Perimeter Defender with AI-based functionality and other third-party applications. IK10, IP66, IP67, NEMA 4X rated, UL listed and compliant to a number of MIL standards (among those is MIL-STD-810H / 521.4). This product is free from PVC, BFR and CFR. NETD 30 mK 25C, F1.0 Image sensor resolution QVGA (384x288 pixels) The thermal image sensor of this product is manufactured within the European Union and is subject to EU export control regulations. You should always consult and comply with the regulations of the appropriate local export control authorities.
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS Q19 Series Q1971-E - thermal network camera - bullet - TAA Compliant Device Type: Thermal network camera - fixed - bullet - outdoor - weather resistant / impact resistant Audio: Yes: two-way audio via edge-to-edge technology Dimensions (WxDxH): 5.2 in x 10.7 in x 5.2 in Weight: 3.09 lbs Color: White, NCS S 1002-B Connectivity Technology: Wired Max Resolution: 768 x 576 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: Uncooled Micro bolometer Focal Length Control: Fixed focal Focal Length: 13 mm Focus Adjustment: Athermalized (min distance 15.4 ft) Lens Iris: F/1.0 Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Voltage: DC 12 - 28 V / PoE Class 3 Features: Thermal sensitivity 20 mK (NETD), 384 x 288 thermal resolution, electronic image stabilization, multiple color palettes, Audio Detection, active tampering alarm, deep learning processing unit (DLPU), video streaming indicator, contrast control, brightness control, sharpness control, exposure control, compression, rotation mode, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, image overlay, simplex audio, half duplex audio, network speaker pairing, auto gain control, text overlay, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Pixel Counter Support, early warning fire prevention, brute force delay protection, digest authentication, memory card encryption, password protection, signed firmware, Axis device ID, Axis Edge Vault, secure boot, secure keystore, signed video, isothermal palette, TPM 2.0 module, spot temperature meter, 10 temperature zones detection, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), 8 - 14 μm spectral response, scheduled recording, Electronic Image Stabilizer (EIS) TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 140 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Thermal network camera Audio Support: Yes: two-way audio via edge-to-edge technology Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Bullet Connectivity Technology: Wired Width: 5.2 in Depth: 10.7 in Height: 5.2 in Weight: 3.09 lbs Localization: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States - Camera
Type: - fixed - outdoor - weather resistant / impact resistant Digital Video Format: H.264, MJPEG, H.265 Max Digital Video Resolution: 768 x 576 Motion Detection: Yes Frame Rate (max): 30 frames per second RAM: 2 GB Flash Memory: 8 GB Features: Thermal sensitivity 20 mK (NETD), 384 x 288 thermal resolution, electronic image stabilization, multiple color palettes, Audio Detection, active tampering alarm, deep learning processing unit (DLPU), video streaming indicator, contrast control, brightness control, sharpness control, exposure control, compression, rotation mode, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, image overlay, simplex audio, half duplex audio, network speaker pairing, auto gain control, text overlay, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Pixel Counter Support, early warning fire prevention, brute force delay protection, digest authentication, memory card encryption, password protection, signed firmware, Axis device ID, Axis Edge Vault, secure boot, secure keystore, signed video, isothermal palette, TPM 2.0 module, spot temperature meter, 10 temperature zones detection, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), 8 - 14 μm spectral response, scheduled recording, Electronic Image Stabilizer (EIS) - Image Sensor
Type: Uncooled Micro bolometer Effective Pixels: 384 x 288 - Lens Construction
Type: Fixed focal Focal Length: 13 mm Lens Iris: F/1.0 Focus Adjustment: Athermalized Min Focus Distance: 15.4 ft Horizontal Field of View (degree): 29 Vertical Field of View (degree): 22 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf Alarm Inputs Qty: 1 Alarm Outputs Qty: 1 - Expansion / Connectivity
Ports: LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card - Miscellaneous
Included Accessories: Drill hole template, torx L-key, Resistorx L-key, terminal block connectors, connector guard, cable gaskets, owner authentication key TAA Compliant: Yes Compliant Standards: IP66, IP67, Halogen-free, FIPS 140-2 Level 2, CSA, UL/cUL, UKCA, KC, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 62236-4, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 method B, MIL-STD 810H 501.7, MIL-STD 810H 502.7, MIL-STD 810H 505.7, MIL-STD 810H 506.6, MIL-STD 810H 507.6, MIL-STD 810H 509.7, MIL-STD 810H 510.7, MIL-STD 810H 514.8, MIL-STD 810H 516.8, MIL-STD 810H 521.4, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, EAL 4+, IEEE 802.1x, IEEE 802.1ar, X.509, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907, IK10 Color: White, NCS S 1002-B - Power
Power Requirements: DC 12 - 28 V / PoE Class 3 - Software / System Requirements
Software Included: AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: POLAND - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02947-001 |
| MFG Part# | 02947-001 |
| Max Resolution | 768 x 576 |
| Device Type | Thermal network camera |
| Connectivity Technology | Wired |
| Form Factor | Bullet |
| Type | Fixed focal |
| Color | NCS S 1002-B, White |
| Focus Adjustment | Athermalized |
| Digital Video Format | H.264, H.265, MJPEG |
| Focal Length | 13 mm |
