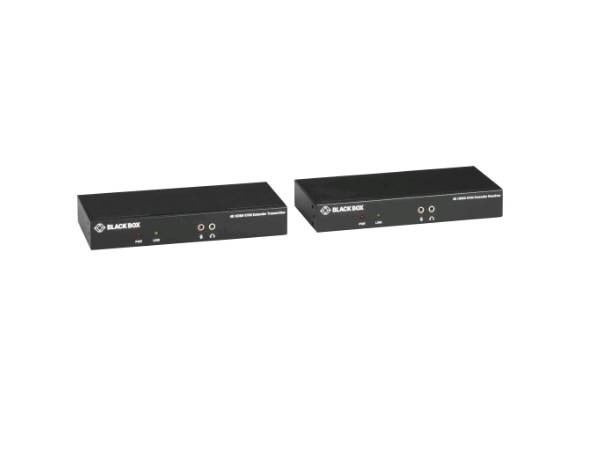

BLACK BOX CORP KVX SERIES HDMI 4K KVM EXTENDER, SH 6677769
SKU
6677769
CA$843.95
KVM Extender Kit over CATx - Single-Monitor, HDMI 4K30, USB 2.0, Audio, Serial, Local Video Out, GSA, TAA
Category: KVM Switch & AV Splitters
- Primary Information
Device Type: KVM Extender Networking Type: Ethernet Connectivity Technology: Wired Interfaces: CATX TRANSMITTER Host Connection: Video Input: (1) HDMI (Female); Serial Control Port: (1) DB9 (Female); Link Port: (1) RJ45 (Female); USB: (1) USB Type-B (Female); Audio: (1) Line in; (1) Line out; Local Video Output: (1) HDMI (Female) CATX RECEIVER Console Connection: Video Output: (1) HDMI (Female); Serial Control Port: (1) DB9 (Male); Link Port: (1) RJ45 (Female); USB: (4) USB Type-A (Female); Audio: (1) Mic In; (1) Speaker Out Connections: RJ-45 Max Resolution (external): 3840x2160 Data Link Protocol: Gigabit Ethernet Width: 3.27 Inch Depth: 7.09 Inch Height: 0.83 Inch Service & Support Type: 2 Year Double Diamond Warranty (Standard) Model: KVXLCH-100 What's Included: (1) Transmitter (1) Receiver (2) 5V, 2A Power Supplies (includes US, EU, UK plug types) (1) HDMI Cable, M/M 1.2m (4 ft.) (1) USB Type A to B Cable, M/M 1.8m (6 ft.) (1) 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.) (2) Deskmounting brackets (with screws) Features: HDMI video resolution up to UHD 4K Remote access up to 100 meter Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz over Fiber optic Transparent USB 2.0 extension supports HID devices, mass storage devices Supports RS-232 peripheral (serial) devices Bi-directional audio via speaker/mic connection Local video port loopback for monitoring on transmitter (TX) unit Supports EDID pass-through - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43211604
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43211604 |
| Part# | BBC-KVXLCH-100 |
| MFG Part# | KVXLCH-100 |
| UPC | 822088133650 |
| Device Type | KVM Extender |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
