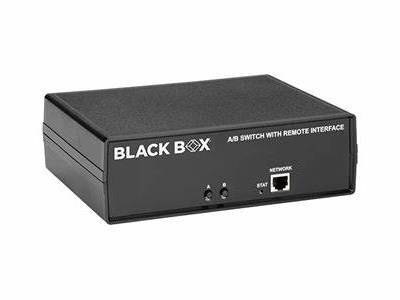

BLACK BOX CORP SWITCH LATCHING ETHERNET, RS232 SW1041A 5783861
SKU
5783861
CA$856.33
CAT6 A/B Switch - Latching RJ45 Remote Controlled Ethernet RS232, Dry Contact, GSA, TAA
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: SW1041A Form Factor: Rack-Mountable Connectivity Technology: Wired Data Transfer Rate: 10 Gbps Networking / Ports Qty: 4 Data Link Protocol: 10 Gigabit Ethernet Power / Device Type: Power Supply Power / Installed Qty: 1 Power / Voltage Required: 100-240 VAC, 50-60 Hz Features: Switch ports transparent to data rates, formats, and protocols up to 10 Gbps Supports serial remote control and can be switched using commands over a serial RS-232 communications line. - Interfaces / Ports
Interfaces: (3) RJ45; Ethernet Control Port: (1) RJ45 10BASE-T Port for remote Control interface; Serial Control Port: DB9 (Female); Remote Control/status Port: (1) 6-Position Terminal Block; Power: (1) 2.1 x 5.5-mm Power Input - Network
Interfaces: (3) RJ45; Ethernet Control Port: (1) RJ45 10BASE-T Port for remote Control interface; Serial Control Port: DB9 (Female); Remote Control/status Port: (1) 6-Position Terminal Block; Power: (1) 2.1 x 5.5-mm Power Input - Dimensions&Miscellaneous
Width: 6.25 Inch Depth: 8.1 Inch Height: 2.5 Inch Weight: 4 lbs. - Service&Support
Service & Support Type: 1 Year Warranty - Special Feature
RoHS: Y COO: UNITED STATES - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43222612 |
| Part# | BBX-SW1041A |
| MFG Part# | SW1041A |
| UPC | 822088118183 |
| Network Device Type | Switch |
| Power / Installed Qty | 1 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Form Factor | Rack-Mountable |
| Networking / Ports Qty | 4 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Power / Device Type | Power Supply |
