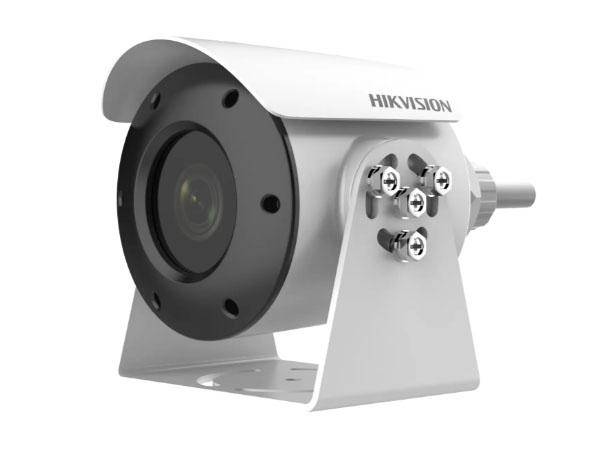

CAMERA 2MP EXPLOSION-PROOF 6745441
SKU
6745441
- Primary Information
Product Description: Hikvision EXIR Explosion-Proof Series DS-2XE6025G0-IS - network surveillance camera - bullet Device Type: Network surveillance camera - fixed - bullet - explosion-proof / weatherproof Audio: Yes Dimensions (WxDxH): 5.4 in x 6.8 in x 5.4 in Weight: 4.72 lbs Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 1920 x 1080 Frame Rate (max): 30 frames per second Motion Detection: Yes Video Modes: 1080p Optical Sensor Type: Progressive Scan CMOS - 1/2.8" Minimum Illumination: 0.009 lux - color - F1.6 - AGC on ¦ 0.004 lux - B&W - F1.6 ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 4 mm Lens Mounting: M12 mount Lens Iris: F/1.6 Panning Range (degree): 0 to 90 Tilting Range (degree): 0 to 60 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 24 V / PoE Features: 3D Digital Noise Reduction Technology, Wide Dynamic Range (WDR), infrared cut filter, 850nm illuminator, triple video stream, Target Cropping, Region of Interest (ROI), environment noise filtering, ONVIF (Profile S) support, ONVIF (Profile G) support, password protection, complicated password, 802.1x authentication, watermark, IP address filtering, digest authentication, WSSE, saturation control, rotate mode, brightness control, contrast control, sharpness control, Automatic Gain Control (AGC), white balance, Backlight Compensation (BLC), Highlight Compensation (HLC), Defog, Electronic Image Stabilizer (EIS), distortion correction function, image overlay, reset button, video tampering alarm, Line Crossing Detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, face detection, Scene Change Detection, audio exception detection, Defocus Detection, NAS-Ready, anti-flicker, heartbeat, flash log, image mirror, password reset via e-mail, Pixel Counter Support, Privacy Mask Function Manufacturer Warranty: 3-year warranty Environmental Parameters (operating): -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes Audio Formats: G.711, G.722.1, G.726, MP2L2, PCM Form Factor: Bullet Connectivity Technology: Wired Width: 5.4 in Depth: 6.8 in Height: 5.4 in Weight: 4.72 lbs - Camera
Type: Color - Day&Night - fixed - explosion-proof / weatherproof Digital Video Format: MJPEG, H.264, H.265, H.265+, H.264+ Max Digital Video Resolution: 1920 x 1080 Motion Detection: Yes Video Modes: 1080p Exposure Range: 1 sec - 1/100000 sec Minimum Illumination: 0.009 lux - color - F1.6 - AGC on ¦ 0.004 lux - B&W - F1.6 ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 98 ft Digital Video Capture Resolution: 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 704 x 480, 640 x 480, 320 x 240, 352 x 288, 352 x 240 Frame Rate (max): 30 frames per second Features: 3D Digital Noise Reduction Technology, Wide Dynamic Range (WDR), infrared cut filter, 850nm illuminator, triple video stream, Target Cropping, Region of Interest (ROI), environment noise filtering, ONVIF (Profile S) support, ONVIF (Profile G) support, password protection, complicated password, 802.1x authentication, watermark, IP address filtering, digest authentication, WSSE, saturation control, rotate mode, brightness control, contrast control, sharpness control, Automatic Gain Control (AGC), white balance, Backlight Compensation (BLC), Highlight Compensation (HLC), Defog, Electronic Image Stabilizer (EIS), distortion correction function, image overlay, reset button, video tampering alarm, Line Crossing Detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, face detection, Scene Change Detection, audio exception detection, Defocus Detection, NAS-Ready, anti-flicker, heartbeat, flash log, image mirror, password reset via e-mail, Pixel Counter Support, Privacy Mask Function - Image Sensor
Type: Progressive Scan CMOS 1/2.8" - Lens Construction
Type: M12 mount - fixed focal Focal Length: 4 mm Lens Iris: F/1.6 Horizontal Field of View (degree): 82.6 Vertical Field of View (degree): 43.4 Diagonal Field of View (degree): 96.6 - Panning
Range (degree): 0 to 90 - Tilting
Range (degree): 0 to 60 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DDNS, DNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, IPv6, UDP/IP, Bonjour, QOS, SMB, CIFS, NFS, ISAPI Alarm Inputs Qty: 1 Alarm Outputs Qty: 1 - Expansion / Connectivity
Ports: LAN/power - RJ-45 ¦ Audio line in/line out - terminal block Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: EAP-TLS, EAP-LEAP, MD5, TLS 1.2 - Miscellaneous
Compliant Standards: IEEE 802.3af, ANSI C63.4, AS/NZS 60950-1:2003, AS/NZS CISPR 32:2015, EN 55024:2010+A1:2015, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC Part 15 B, FCC SDOC, ICES-003:2020 Issue 7, IEC 60950-1, IS13252-1 (2010)/A1:2013/A2:2015, K60950-1:2011-12, REACH SVHC 1097/2006, RoHS 2011/65/EU Amendment 2015/863, SANS IEC 60950-1, IEC 62262 IK08, IEC 60529 IP68, ATEX II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68, IECEx Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68, EN 45545, E Mark - Power
Power Requirements: DC 24 V / PoE - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Dimensions & Weight (Shipping)
Shipping Width: 12.3 in Shipping Depth: 8.4 in Shipping Height: 8.2 in Shipping Weight: 6.31 lbs - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | HIK-DS2XE6025G0IS4MM |
| MFG Part# | DS-2XE6025G0-IS(4MM) |
| UPC | 842571138658 |
| Max Resolution | 1920 x 1080 |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Bullet |
| Type | M12 mount - fixed focal |
| Digital Video Format | H.264, H.264+, H.265, H.265+, MJPEG |
| Digital Video Capture Resolution | 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 352 x 240, 352 x 288, 640 x 480, 704 x 480, 704 x 576 |
| Focal Length | 4 mm |
| Encryption Algorithm | EAP-LEAP, EAP-TLS, MD5, TLS 1.2 |
