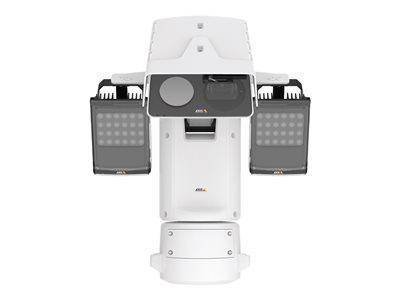

CAMERA 640X480 RES 8.3 FPS 35-105 MM 6699329
SKU
6699329
- Primary Information
Product Description: AXIS Q8752-E - thermal / network surveillance camera Device Type: Thermal / network surveillance camera - pan / tilt / zoom - outdoor Audio: Yes Camera Mount Type: Wall mount, pole mount, corner mount Dimensions (WxDxH): 9.6 in x 14.2 in x 22.9 in Weight: 33.29 lbs Color: White Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 32 x Max Resolution: 1920 x 1080 Frame Rate (max): 30 frames per second Motion Detection: Yes Video Modes: 1080p Optical Sensor Type: CMOS - 1/2.8" - 2 MP Minimum Illumination: 0.09 lux - color - F1.4 - 30 IRE ¦ 0.008 lux - B&W - F1.4 - 30 IRE ¦ 0.06 lux - color - F1.4 - 50 IRE ¦ 0.01 lux - B&W - F1.4 - 50 IRE Focal Length: 4.3 mm - 137.6 mm Focus Adjustment: Automatic Lens Iris: F/1.4-4.0, f/1.6 (thermal) - auto iris Panning Range (degree): 360 Tilting Range (degree): -90 to +45 Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Voltage: AC 20 V / DC 28 V Features: Zipstream technology, Lightfinder 2.0 technology, electronic image stabilization, infrared-cut filter, 256 preset positions, guard tour, on-screen directional indicator, saturation control, contrast control, brightness control, sharpness control, Forensic WDR, Forensic Capture (120 dB), white balance, tone correction, exposure control, exposure zone, defogging, compression, 32 preset positions, Electronic Image Stabilizer (EIS), simplex audio, echo reduction, noise reduction, password protection, IP address filtering, HTTPs encryption, Access Control, digest authentication, secure boot, TPM 2.0 module, tamper-detection, PTZ ready, text overlay, Pixel Counter Support, surge protection, Voltage Transient Protection, 8.3 fps on thermal mode, 3x thermal zoom, 4x digital thermal zoom, 12x total zoom Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 131 °F; 10 - 100% relative humidity - General
Device Type: Thermal / network surveillance camera Audio Support: Yes Audio Formats: LPCM, AAC-LC, ADPCM, G.711, OPUS Camera Mount Type: Wall mount, pole mount, corner mount Connectivity Technology: Wired Width: 9.6 in Depth: 14.2 in Height: 22.9 in Weight: 33.29 lbs - Camera
Type: Color - Day&Night - pan / tilt / zoom - outdoor Digital Video Format: MJPEG, H.264, H.265, MPEG-4, AVC, HEVC Max Digital Video Resolution: 1920 x 1080 Motion Detection: Yes Video Modes: 1080p Digital Zoom: 12 Exposure Range: 2 sec - 1/66500 sec Minimum Illumination: 0.09 lux - color - F1.4 - 30 IRE ¦ 0.008 lux - B&W - F1.4 - 30 IRE ¦ 0.06 lux - color - F1.4 - 50 IRE ¦ 0.01 lux - B&W - F1.4 - 50 IRE Digital Video Capture Resolution: 320 x 180, 1920 x 1080, 1080p Frame Rate (max): 30 frames per second RAM: 2048 MB Flash Memory: 512 MB Features: Zipstream technology, Lightfinder 2.0 technology, electronic image stabilization, infrared-cut filter, 256 preset positions, guard tour, on-screen directional indicator, saturation control, contrast control, brightness control, sharpness control, Forensic WDR, Forensic Capture (120 dB), white balance, tone correction, exposure control, exposure zone, defogging, compression, 32 preset positions, Electronic Image Stabilizer (EIS), simplex audio, echo reduction, noise reduction, password protection, IP address filtering, HTTPs encryption, Access Control, digest authentication, secure boot, TPM 2.0 module, tamper-detection, PTZ ready, text overlay, Pixel Counter Support, surge protection, Voltage Transient Protection, 8.3 fps on thermal mode, 3x thermal zoom, 4x digital thermal zoom, 12x total zoom - Image Sensor
Type: 2 MP CMOS 1/2.8" - Lens Construction
Optical Zoom: 32 x Focal Length: 4.3 mm - 137.6 mm Lens Iris: F/1.4-4.0, f/1.6 (thermal) auto iris Focus Adjustment: Automatic Horizontal Field of View (degree): 2.4 - 58.5 Vertical Field of View (degree): 1.3 - 35 - Panning
Range (degree): 360 Speed (degree/sec): Up to 120 - Tilting
Range (degree): -90 to +45 Speed (degree/sec): Up to 65 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, ARP, Bonjour, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MQTT, NTCIP, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2, SNMP 3, SOCKS, SRTP, SSH, SSL, TLS, UPnP, USGv6 - Expansion / Connectivity
Ports: LAN - SFP ¦ LAN - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card - Miscellaneous
Included Accessories: Connector kit, torx bits T20 and T30 Compliant Standards: IEEE 802.1x, FIPS 140-2, IP66, IK10, NEMA Type 4X, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, CISPR 35, EN 50121-4, EN 50498, EN 55032 Class A, EN 60068-2-1, EN 60068-2-14, EN 60068-2-2, EN 60068-2-27, EN 60068-2-6, EN 61000-6-1, EN 61000-6-2, EN55024, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC 62262 IK10, IEC/EN 60529 IP66, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, ISO 21207 method B, KN32 Class A, KN35, MIL-STD 810G 501.5, MIL-STD 810G 502.5, MIL-STD 810G 505.5, MIL-STD 810G 506.5, MIL-STD 810G 509.5, NEMA TS-2 (2.2.7-2.2.9), NEMA250 Type 4X, NIST SP500-267, VCCI Class A ITE Color: White - Power
Power Requirements: AC 20 V / DC 28 V - Software / System Requirements
Software Included: Drivers & Utilities - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 131 °F Relative Humidity (operating): 10 - 100% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-01840-001 |
| MFG Part# | 01840-001 |
| UPC | 7331021068445 |
| Max Resolution | 1920 x 1080 |
| Device Type | Thermal / network surveillance camera |
| Optical Zoom | 32 x |
| Connectivity Technology | Wired |
| Type | 2 MP CMOS 1/2.8" |
| Color | White |
| Digital Zoom | 12 |
| Focus Adjustment | Automatic |
| Digital Video Format | AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 |
| Digital Video Capture Resolution | 1080p, 1920 x 1080, 320 x 180 |
| Focal Length | 4.3 mm - 137.6 mm |
