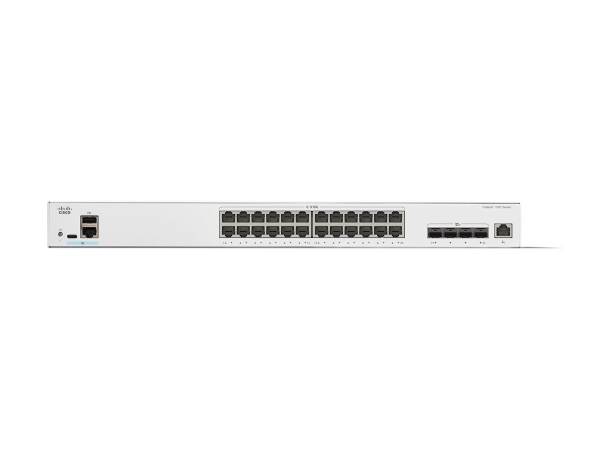

CATALYST 1300 24-PORT 10GE, 4X10G SFP+ SHARED 7974086

SKU
7974086
CA$4,444.58
Only 1 left
Switch - C1300-24XT - Rack-Mountable - Wired - 10Gbps - Gigabit Ethernet - ARM - 1GB RAM - 512MB Flash Memory - 100-240V 50-60 Hz - Layer 2 and Layer 3 - IEEE 802.3az ,IEEE 802.1ad ,IEEE 802.1X,IEEE 802.3af/at - Limited lifetime with return-to-factory replacement





buy now pay later
  • Primary Information
    Product Description: Cisco Catalyst 1300-24XT - switch - 24 ports - smart - rack-mountable
    Device Type: Switch - 24 ports - L3 - smart
    Enclosure Type: Rack-mountable
    Subtype: 10 Gigabit Ethernet
    Ports: 24 x 10 Gigabit Ethernet + 4 x combo 10 Gigabit SFP+/RJ-45
    Performance: Forwarding rate (64‑byte packets): 357.12 Mpps ¦ Switching capacity: 480 Gbps
    Capacity: MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
    MAC Address Table Size: 16000 entries
    Jumbo Frame Support: 9000 bytes
    Routing Protocol: STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2
    Remote Management Protocol: CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS
    Features: Fanless, VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunneling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimization, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button
    Compliant Standards: IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
    Power: AC 100-240 V (50/60 Hz)
    Dimensions (WxDxH): 17.5 in x 9.4 in x 1.7 in
    Weight: 6.13 lbs
    Manufacturer Warranty: Limited lifetime warranty
  • General
    Device Type: Switch - 24 ports - L3 - smart
    Enclosure Type: Rack-mountable
    Subtype: 10 Gigabit Ethernet
    Ports: 24 x 10 Gigabit Ethernet + 4 x combo 10 Gigabit SFP+/RJ-45
    Performance: Forwarding rate (64‑byte packets): 357.12 Mpps ¦ Switching capacity: 480 Gbps
    Capacity: MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
    MAC Address Table Size: 16000 entries
    Jumbo Frame Support: 9000 bytes
    Routing Protocol: STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2
    Remote Management Protocol: CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS
    Encryption Algorithm: SSL, MD5
    Authentication Method: RADIUS, TACACS+
    Features: Fanless, VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunneling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimization, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button
    Compliant Standards: IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
    Processor: X ARM: 1.4 GHz
    RAM: 1 GB DDR4 SDRAM
    Flash Memory: 512 MB
    Status Indicators: System, link/activity/speed, PoE
  • Expansion / Connectivity
    Interfaces: 24 x 10GBase-T RJ-45 ¦ 4 x 10GBase-T/10GBase-X RJ-45/SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console ¦ 1 x USB ¦ 1 x RJ-45
  • Power
    Power Device: Internal power supply
    Voltage Required: AC 100-240 V (50/60 Hz)
    Power Consumption Operational: 78.6 Watt
    Power Consumption Stand by: 37.8 Watt
  • Miscellaneous
    Included Accessories: Pointer card, mounting kit
    MTBF: 2,165,105 hours
    Compliant Standards: Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE
  • Dimensions & Weight
    Width: 17.5 in
    Depth: 9.4 in
    Height: 1.7 in
    Weight: 6.13 lbs
  • Manufacturer Warranty
    Service & Support: Limited warranty - return to factory - lifetime ¦ Technical support - 1 year
  • Environmental Parameters
    Min Operating Temperature: 23 °F
    Max Operating Temperature: 122 °F
    Humidity Range Operating: 10 - 90% RH (non-condensing)
    Min Storage Temperature: -13 °F
    Max Storage Temperature: 158 °F
    Humidity Range Storage: 10 - 90% RH (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
BRANDSCISCO SYSTEMS
UNSPSC43222612
Part#CSC-C1300-24XT
MFG Part#C1300-24XT
UPC889728521567
Device TypeSwitch - 24 ports - L3 - smart
Enclosure TypeRack-mountable
Remote Management ProtocolCLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Encryption AlgorithmMD5, SSL
