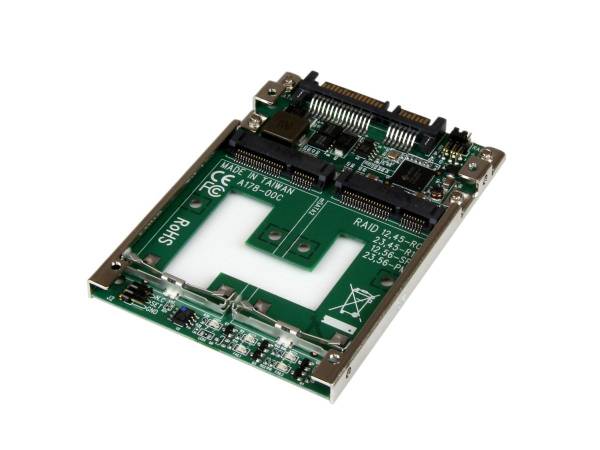

DUAL MSATA SSD TO 2.5SATA RAID ADAPTER 5238893
SKU
5238893
CA$70.99
Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay - 2 SSD to 2.5IN HDD Converter - mSATA to SATA Adapter - SSD to SATA - 7mm mSATA Adapter - 2.5IN Mounting Bracket - Dual mSATA RAID SATA Adapter
Category: Storage Controllers
- Primary Information
Product Description: StarTech.com Dual mSATA SSD to 2.5" SATA RAID Adapter Converter - 2x mSATA SSD to 2.5in SATA Adapter with RAID and 7mm Open Frame Housing (25SAT22MSAT) - storage controller - mSATA - SATA 6Gb/s Device Type: Storage controller - internal Bus Type: SATA 6Gb/s Interface: mSATA Data Transfer Rate: 6 Gbit/s Supported Devices: Hard drive, solid state drive Channel Qty: 2 RAID Level: RAID 0, RAID 1, JBOD, BIG Dimensions (WxDxH): 2.8 in x 3.9 in x 0.3 in Weight: 1.41 oz Manufacturer Warranty: 2-year warranty Designed For: P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F - General
Device Type: Storage controller - internal Host Bus: SATA 6Gb/s - Storage Controller
Interface: mSATA Data Transfer Rate: 6 Gbit/s Supported Devices: Hard drive, solid state drive Channel Qty: 2 RAID Level: RAID 0, RAID 1, JBOD, BIG - Expansion / Connectivity
Interfaces: 2 x - mSATA Connections: 1 x SATA 6Gb/s - 15 pin Serial ATA power - Miscellaneous
Mounting Kit: Included Compliant Standards: FCC, RoHS - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Dimensions & Weight
Width: 2.8 in Depth: 3.9 in Height: 0.3 in Weight: 1.41 oz - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 185 °F - Compatibility Information
Designed For: P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43201500
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201500 |
| Part# | STC-25SAT22MSAT |
| MFG Part# | 25SAT22MSAT |
| UPC | 65030855617 |
| Device Type | Storage controller - internal |
| Data Transfer Rate | 6 Gbit/s |
| RAID Level | BIG, JBOD, RAID 0, RAID 1 |
