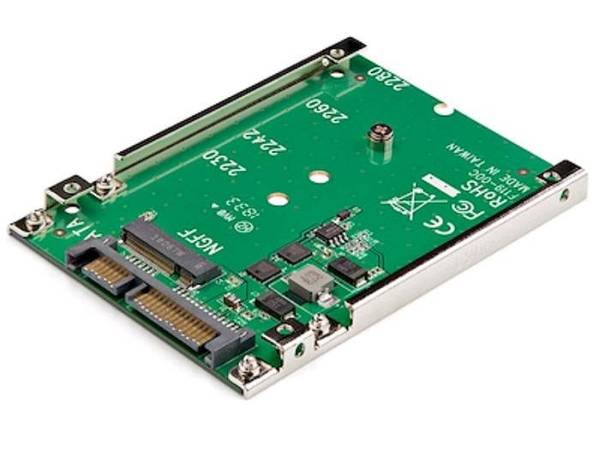

Product Description: | StarTech.com M.2 SATA SSD to 2.5in SATA Adapter - M.2 NGFF to SATA Converter - 7mm - Open-Frame Bracket - M2 Hard Drive Adapter (SAT32M225) - storage controller - SATA 6Gb/s - SATA 6Gb/s |
Device Type: | Storage controller - internal |
Bus Type: | SATA 6Gb/s |
Interface: | SATA 6Gb/s |
Data Transfer Rate: | 6 Gbit/s |
Supported Devices: | Hard drive, solid state drive |
Channel Qty: | 1 |
Dimensions (WxDxH): | 2.8 in x 3.9 in x 0.3 in |
Weight: | 1.41 oz |
Manufacturer Warranty: | 2-year warranty |
Designed For: | P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F, SATDOCK5U3ER, SATERASER4, SDOCK1EU3P, SDOCK1EU3P2, SDOCK4U313, SDOCKU313, SDOCKU313E, USB312SAT3, USB31C2SAT3, USB31CSAT3CB |
Device Type: | Storage controller - internal |
Host Bus: | SATA 6Gb/s |
Interface: | SATA 6Gb/s |
Data Transfer Rate: | 6 Gbit/s |
Supported Devices: | Hard drive, solid state drive |
Channel Qty: | 1 |
Processor: | No CPU |
Interfaces: | 1 x SATA 6Gb/s - SATA power |
Connections: | 1 - M.2 Card |
Features: | Not compatible with M.2 NVMe or AHCI PCI-Express SSDs |
Mounting Kit: | Included |
Compliant Standards: | FCC, RoHS |
Service & Support: | Limited warranty - 2 years |
Width: | 2.8 in |
Depth: | 3.9 in |
Height: | 0.3 in |
Weight: | 1.41 oz |
Min Operating Temperature: | -40 °F |
Max Operating Temperature: | 185 °F |
Designed For: | P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F, SATDOCK5U3ER, SATERASER4, SDOCK1EU3P, SDOCK1EU3P2, SDOCK4U313, SDOCKU313, SDOCKU313E, USB312SAT3, USB31C2SAT3, USB31CSAT3CB |
COO: | TAIWAN |
UNSPSC Code: | 43201500 |
BRANDS | STARTECHCOM |
---|---|
UNSPSC | 43201500 |
Part# | STC-SAT32M225 |
MFG Part# | SAT32M225 |
UPC | 65030855600 |
Device Type | Storage controller - internal |
Data Transfer Rate | 6 Gbit/s |
