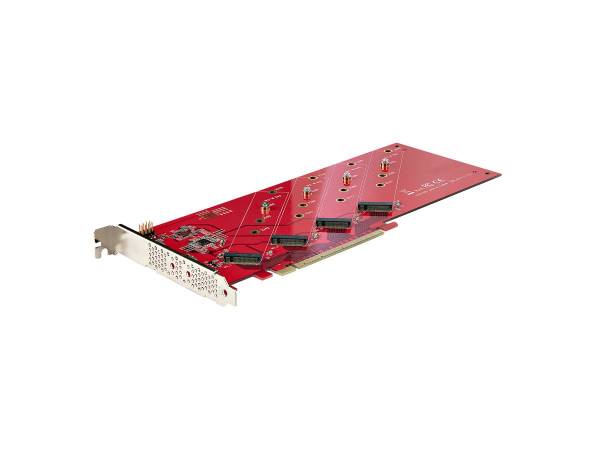

QUAD M.2 PCIE ADAPTER FOR NVME/AHCI SSD 7043619
SKU
7043619
CA$217.99
Quad M.2 PCIe Adapter Card enables installation of 4x PCIe M.2 SSDs (NVMe/AHCI) through an x16 PCI Express 4.0 slot; Read/write speeds up to 7.8GBps/drive; PCIe Bifurcation support is required; Windows/Linux; Vented full-profile bracket pre-installe
Category: Storage Controllers
- Primary Information
Product Description: StarTech.com Quad M.2 PCIe Adapter Card, x16 Quad NVMe or AHCI M.2 SSD to PCI Express 4.0, Up to 7.8GBps/Drive, For 2242/2260/2280/22110mm PCIe M-Key M2 SSDs, Bifurcation Required - PC/Linux Compatible (QUAD-M2-PCIE-CARD-B) - interface adapter - M.2 Card - PCIe 4.0 x16/x8 Device Type: Interface adapter - plug-in card - low profile Bus Type: PCIe 4.0 x16/x8 Color: Red Supported Form Factor: Expansion Slot to 4 x M.2 Expansion Bays: 4 x internal - M.2 2242/2260/2280/22110 Hard Drive Form Factor Compatibility: M.2 Interface: M.2 Card Data Transfer Rate: 7.8 GBps Supported Devices: Solid state drive Max Storage Devices Qty: 4 RAID Level: RAID 0, RAID 1, JBOD Dimensions (WxDxH): 0.9 in x 11.4 in x 5 in Weight: 4.51 oz Manufacturer Warranty: 2-year warranty - General
Device Type: Interface adapter - plug-in card - low profile Hard Drive Form Factor Compatibility: M.2 Supported Form Factor: Expansion Slot to 4 x M.2 Host Bus: PCIe 4.0 x16/x8 Color: Red - Storage Controller
Interface: M.2 Card Data Transfer Rate: 7.8 GBps Supported Devices: Solid state drive Max Storage Devices Qty: 4 RAID Level: RAID 0, RAID 1, JBOD - Expansion / Connectivity
Bays: 4 x internal - M.2 2242/2260/2280/22110 - Miscellaneous
Included Accessories: Low-profile bracket Features: Supports AHCI mode, PCIe bifurcation, LED indicator Mounting Kit: Included - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Dimensions & Weight
Width: 0.9 in Depth: 11.4 in Height: 5 in Weight: 4.51 oz - Dimensions & Weight (Shipping)
Shipping Width: 11.4 in Shipping Depth: 6.9 in Shipping Height: 1.2 in Shipping Weight: 8.32 oz - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 176 °F Humidity Range Operating: 15 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201500
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201500 |
| Part# | STC-QUAD-M2-PCIE-CARD-B |
| MFG Part# | QUAD-M2-PCIE-CARD-B |
| UPC | 65030895606 |
| Device Type | Interface adapter - plug-in card - low profile |
| Data Transfer Rate | 7.8 GBps |
| RAID Level | JBOD, RAID 0, RAID 1 |
| Color | Red |
