CELERITY 8GB 2CH FC HBA 11841277
SKU
11841277
Category: Storage Controllers
- Primary Information

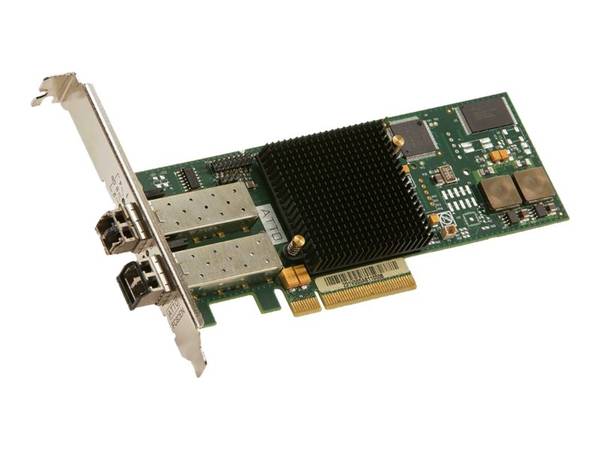

Product Description: ATTO Celerity FC-82EN - host bus adapter - PCIe x8 - Fibre Channel x 2 Device Type: Host bus adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express x8 PCI Specification Revision: PCIe 2.0 Ports: Fibre Channel x 2 Dimensions (WxDxH): 6.6 in x 2.7 in Data Link Protocol: 8Gb Fibre Channel Data Transfer Rate: 8.5 Gbps System Requirements: Red Hat Linux, Microsoft Windows Server 2003, SuSE Linux Kernel 2.6.x, Apple MacOS X 10.4.x, Red Hat Fedora Core, Microsoft Windows Vista / XP, Microsoft Windows Server 2008, Apple MacOS X 10.5.x Microsoft Certification: Compatible with Windows 7 Manufacturer Warranty: 3-year warranty - General
Device Type: Host bus adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express x8 PCI Specification Revision: PCIe 2.0 - Networking
Ports: Fibre Channel x 2 Connectivity Technology: Wired Data Link Protocol: 8Gb Fibre Channel Fibre Channel: FC-AL, FC-AL-2, FC-FLA, FC-FS, FC-PLDA, FCP Data Transfer Rate: 8.5 Gbps Features: Firmware upgradable, Advanced Data Streaming (ADS) - Expansion / Connectivity
Expansion Slots: 4 (total) / 0 (free) x SFP+ Interfaces: 2 x Fibre Channel - LC - x 2 Compatible Slots: 1 x PCI Express x8 - Miscellaneous
Compatible with Windows 7: "Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. Compliant Standards: EN55024, EN55022 Class B, FCC Part 15 B, RoHS, EN 60950-1, EN 60825 - Software / System Requirements
OS Required: Red Hat Linux, Microsoft Windows Server 2003, SuSE Linux Kernel 2.6.x, Apple MacOS X 10.4.x, Red Hat Fedora Core, Microsoft Windows Vista / XP, Microsoft Windows Server 2008, Apple MacOS X 10.5.x - Dimensions & Weight
Depth: 6.6 in Height: 2.7 in - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | ATTO TECHNOLOGY |
|---|---|
| UNSPSC | 43201404 |
| Part# | AOT-CTFC-82EN-000 |
| MFG Part# | CTFC-82EN-000 |
| UPC | 603175006947 |
| Device Type | Host bus adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 8.5 Gbps |
| Form Factor | Plug-in card |
| Data Link Protocol | 8Gb Fibre Channel |
