GIGA-BYTE GBT INTEL LGA1700 ((12TH/13TH/14TH GEN) Z790 DDR4 ATX 7514194
SKU
7514194
Category: Motherboards
- Primary Information

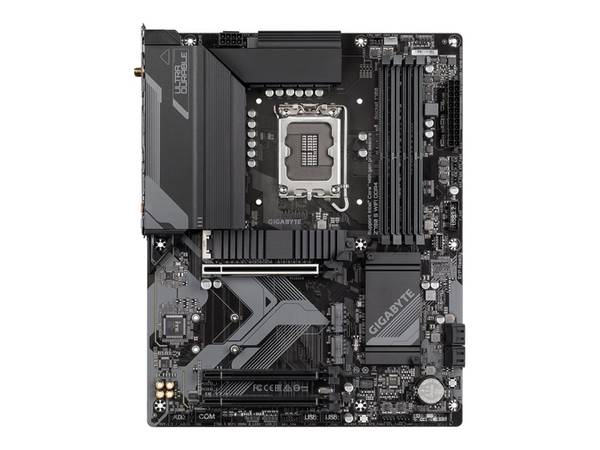

Product Description: Gigabyte Z790 S WIFI (rev. 1.0) - 1.0 - motherboard - ATX - LGA1700 Socket - Z790 Product Type: Motherboard - ATX Chipset Type: Intel Z790 Processor Socket: 1 x LGA1700 Socket Compatible Processors: (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) Max RAM Size: 128 GB RAM Supported: 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered Storage Ports: 4 x SATA-600 (RAID), 3 x M.2 USB / FireWire Ports: 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) Audio: High Definition Audio (7.1-channel) LAN: 802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.1 - General
Product Type: Motherboard - ATX Chipset Type: Intel Z790 Processor Socket: LGA1700 Socket Max Processors Qty: 1 Compatible Processors: (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) - Supported RAM
Max Size: 128 GB Technology: DDR4 Bus Clock: 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4933 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.) Supported RAM Integrity Check: Non-ECC, ECC (operate in non-ECC mode) Registered or Buffered: Unbuffered Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode - Audio
Type: High Definition Audio (7.1-channel) Compliant Standards: High Definition Audio - LAN
Network Controller: Intel Wireless-AC 9560 Network Interfaces: 802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.1 - Expansion / Connectivity
Expansion Slots: 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 3 x M.2 socket (2280/22110 M.2 Key M slot) Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 Interfaces: 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 5 x USB 2.0 ¦ 2 x antenna Internal Interfaces: 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header Power Connectors: 24-pin main power connector, 8-pin ATX12V connector - Features
BIOS Type: AMI BIOS Features: WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support Hardware Monitoring: System voltage, water cooling flow rate, fan fail warning, fan speed detection, temperature detection Hardware Features: Q-Flash, Ultra Durable, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, M.2 Thermal Guard, RGB FUSION 2.0, DIY Friendly Design, GIGABYTE Smart Fan 6, 8+1+1 Phase Power Design, AMD CrossFire technology support, GIGABYTE PerfDrive, MOSFET Heatsink - Miscellaneous
Software Included: Realtek Gaming LAN Bandwidth Control, Norton Internet Security (OEM Version) Width: 12 in Depth: 9.6 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | GIGA-BYTE |
|---|---|
| UNSPSC | 43201513 |
| Part# | GIG-Z790 S WIFI DDR4 |
| MFG Part# | Z790 S WIFI DDR4 |
| UPC | 889523042694 |
| Product Type | Motherboard - ATX |
| Type | High Definition Audio (7.1-channel) |
| Network Controller | Intel Wireless-AC 9560 |
