HPE ANW 8100-24XT4XF4C SWITCH 7256702

SKU
7256702

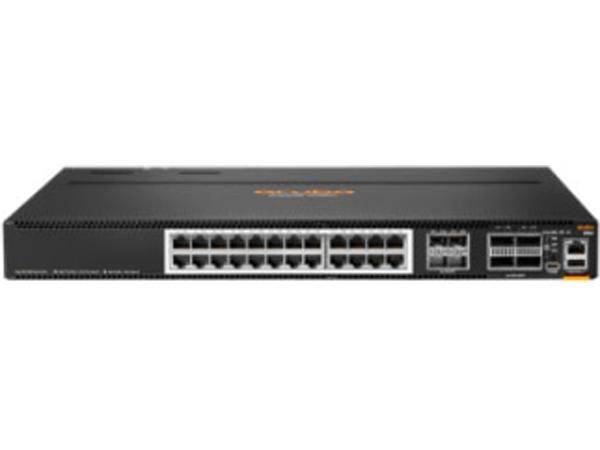

main product photo
CA$33,555.00
Switch - HPE Aruba Networking CX 8100 - SFP+,QSFP28 - Networking / Ports Qty: 32 - ARM Cortex A72





buy now pay later
Category: Hubs & Switches
  • Primary Information
    Product Description: HPE Aruba Networking CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 Switch - Spare Only - switch - 24 ports - managed - rack-mountable
    Device Type: Switch - 24 ports - L3 - managed
    Enclosure Type: Rack-mountable 1U
    Subtype: 10 Gigabit Ethernet
    Ports: 24 x 100/1000/2.5G/5G/10GBase-T + 4 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
    Performance: Switching capacity: 1.36 Tbps
    Capacity: IPv4 ACL entries (ingress): 16384 ¦ IPv6 ACL entries (ingress): 4096 ¦ MAC ACL entries (ingress): 16384 ¦ IPv4 ACL entries (egress): 2048 ¦ IPv6 ACL entries (egress): 512 ¦ MAC ACL entries (egress): 2048 ¦ Maximum number of VLANs: 1024 ¦ IGMP groups: 4000 ¦ MLD groups: 4000 ¦ Packet buffer size: 32 MB ¦ IPv4 routes (Multicast): 4096 ¦ IPv6 routes (Multicast): 4096 ¦ Link aggregation groups: 54
    MAC Address Table Size: 147456 entries
    Jumbo Frame Support: 9000 bytes
    Routing Protocol: BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD
    Remote Management Protocol: SNMP 2, SNMP, SNMP 3, MIB
    Features: Layer 2 switching, port mirroring, sFlow, QoS, ECMP, BFD, DCB, GRE, ERPS, RoCE, BPDU, RoCE v2, OSPF, NTP, policy based routing, RPVST+, UDLD, layer 3 routing, Address Resolution Protocol, Aruba VSX, Dynamic VXLAN with BGP-EVPN, BGP-4
    Compliant Standards: IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by
    Power: AC 100-127/200-240 V (50/60 Hz)
    Dimensions (WxDxH): 17.4 in x 16 in x 1.7 in
    Weight: 18.3 lbs
    System Requirements: AOS-CX
    Manufacturer Warranty: Limited lifetime warranty
  • General
    Device Type: Switch - 24 ports - L3 - managed
    Enclosure Type: Rack-mountable 1U
    Subtype: 10 Gigabit Ethernet
    Ports: 24 x 100/1000/2.5G/5G/10GBase-T + 4 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
    Performance: Switching capacity: 1.36 Tbps
    Capacity: IPv4 ACL entries (ingress): 16384 ¦ IPv6 ACL entries (ingress): 4096 ¦ MAC ACL entries (ingress): 16384 ¦ IPv4 ACL entries (egress): 2048 ¦ IPv6 ACL entries (egress): 512 ¦ MAC ACL entries (egress): 2048 ¦ Maximum number of VLANs: 1024 ¦ IGMP groups: 4000 ¦ MLD groups: 4000 ¦ Packet buffer size: 32 MB ¦ IPv4 routes (Multicast): 4096 ¦ IPv6 routes (Multicast): 4096 ¦ Link aggregation groups: 54
    MAC Address Table Size: 147456 entries
    Jumbo Frame Support: 9000 bytes
    Routing Protocol: BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD
    Remote Management Protocol: SNMP 2, SNMP, SNMP 3, MIB
    Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
    Features: Layer 2 switching, port mirroring, sFlow, QoS, ECMP, BFD, DCB, GRE, ERPS, RoCE, BPDU, RoCE v2, OSPF, NTP, policy based routing, RPVST+, UDLD, layer 3 routing, Address Resolution Protocol, Aruba VSX, Dynamic VXLAN with BGP-EVPN, BGP-4
    Compliant Standards: IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by
    Processor: 1 x ARM Cortex-A72: 1.8 GHz
    RAM: 16 GB
    Flash Memory: 32 GB
  • Expansion / Connectivity
    Interfaces: 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 4 x 40/100Gbit LAN QSFP28/QSFP+ ¦ 1 x USB-C console ¦ 1 x serial RJ-45 ¦ 1 x USB Type A AUX
  • Power
    Power Device: Internal power supply (not installed) - hot-plug
    Max Supported Qty: 2
    Voltage Required: AC 100-127/200-240 V (50/60 Hz)
    Power Consumption Stand by: 120 Watt
  • Miscellaneous
    Included Accessories: 2-Post Rack Kit
    Compliant Standards: IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, Laser Class 1, EN 61000-4-8, VCCI Class A, EN 61000-3-3:2013, IEC 61000-3-3:2013, EMC 2014/30/EU, CNS 13438 Class A, Directive 2014/35/EU, KN32 Class A, EN 55032:2015, CISPR 35, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, IEC 61000-3-2:2019, IEC 62368-1:2018, EN 63000:2018, UL62368-1/CAN/CSA C22.2 No.62368-1, FCC CFR 47 Part 15: 2018 Class A, AS/NZS CISPR 32:2015 Class A, CISPR-32 Class A, EN 62368-1:2020 3rd Edition
  • Software / System Requirements
    OS Required: AOS-CX
  • Dimensions & Weight
    Width: 17.4 in
    Depth: 16 in
    Height: 1.7 in
    Weight: 18.3 lbs
  • Manufacturer Warranty
    Service & Support: Limited warranty - lifetime
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 113 °F
    Humidity Range Operating: 15 - 95% (non-condensing)
    Min Storage Temperature: -40 °F
    Max Storage Temperature: 158 °F
    Humidity Range Storage: 15 - 95% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
More Information
BRANDS HEWLETT PACKARD ENTERPRISE
UNSPSC 43222612
Part# HPE-R9W95A
MFG Part# R9W95A
Device Type Switch - 24 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Remote Management Protocol MIB, SNMP, SNMP 2, SNMP 3
